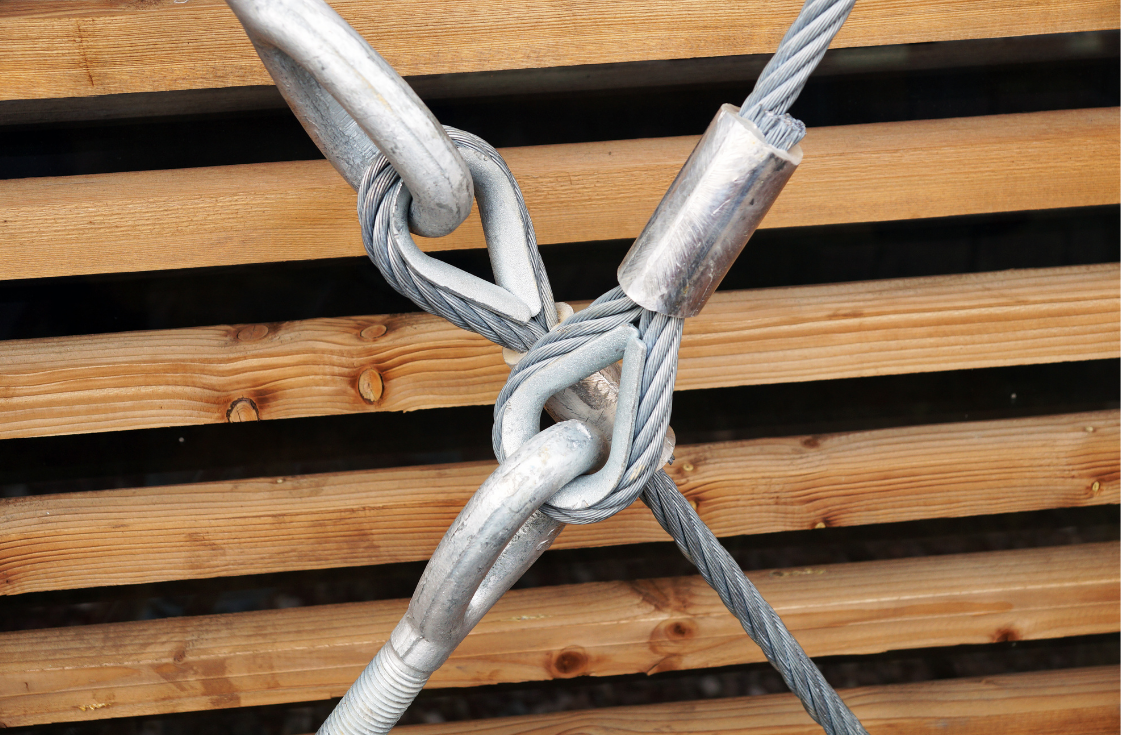

H-Lift Wire Rope Slings and Fittings encompass a robust selection of steel cable lifting assemblies designed to connect heavy loads to lifting devices safely and efficiently in demanding industrial environments.
In modern lifting and rigging operations, strength, flexibility, and reliability are essential. H-Lift Wire Rope Slings & Fittings are engineered to deliver secure load handling for demanding industrial environments, including construction, manufacturing, shipping, offshore, and heavy material handling applications.
A wire rope sling is a robust lifting assembly formed by high-strength steel strands twisted together and terminated with secure fittings (eyes, sockets, or hooks), offering excellent durability and resistance to abrasion, heat, and harsh working conditions.
Raw materials supplied in reels and coils.
Steel Wire Rope (Galv/SS) Aircraft Control CableFinished assemblies for lifting & rigging.
Pressed Slings (Alum. Ferrule) Hand Spliced SlingsStandard loops at both ends for vertical, choker, or basket lifting. The most common configuration for general rigging tasks.
Continuous loop design offering high capacity and flexibility in shifting lifting points. Ideal for heavy choker or basket hitches.
2, 3, or 4 legs connected to a master link for balanced and secure lifting of large, wide, or uneven loads.

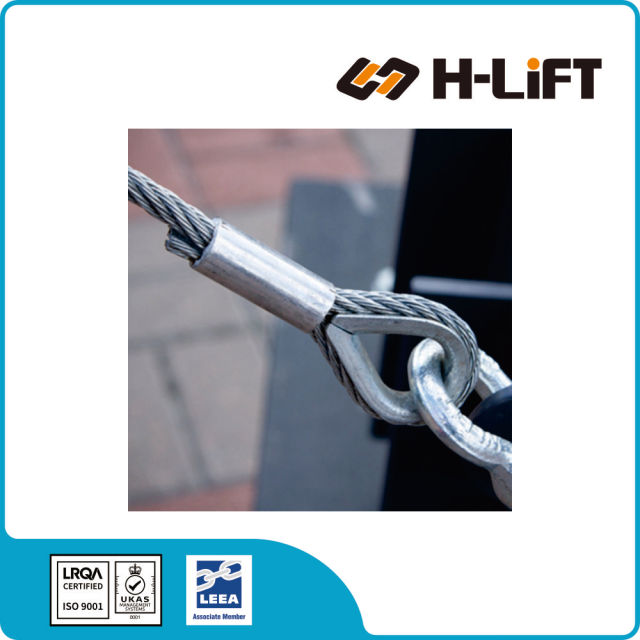

Available as mechanically pressed (secured with ferrules for efficiency) or hand-spliced for applications requiring specific flexibility or a hidden splice.
Exceptional tensile strength designed specifically for heavy-duty hoisting, towing, and anchoring massive loads.
Unlike synthetic webbing, wire rope performs reliably in harsh environments involving sharp edges or abrasive concrete/metal surfaces.
Solid steel construction allows safe operation in higher temperature environments (like foundries) where synthetic fibers would melt or degrade.
Multi-strand construction allows the sling body to conform to irregular load shapes while maintaining strict structural integrity.
Safe Usage, Selection & Inspection Guide
A wire rope sling is a type of lifting sling made of wire rope that is used to hoist heavy loads in a variety of industries, including construction, shipping, and manufacturing. It is made up of several individual strands of wire that are twisted together to form a strong, flexible rope. The wire rope sling is designed to distribute the weight of the load evenly, making it easier to lift and move.
Wire rope slings come in different types, including single-leg slings, double-leg slings, and multi-leg slings, depending on the number of legs or branches that are attached to the load. They are also available in different configurations, such as choker, basket, or vertical hitch, which affect their lifting capacity and application.
Wire rope slings are highly durable and resistant to abrasion, making them suitable for heavy lifting applications that require a high level of strength and durability. However, they should be inspected regularly for signs of wear and tear, and should only be used by trained professionals who understand their safe usage and handling procedures.
Wire rope slings are available in a range of sizes and assemblies. Select the slings to be used and plan the lift taking the following into account:
Type of sling to be used - endless, single, two, three or four leg.
Capacity - the sling must be both long enough and strong enough for the load and the slinging method.
Apply the mode factor for the slinging method.
For use at temperatures exceeding 100°C or below minus 40°C refer to the supplier's instructions.
Where slings may come into contact with acids or chemicals consult the supplier.
In the case of multi-leg slings the angle between the legs should not be less than 30° or exceed the maximum marked.
Multi-leg slings exert a gripping force on the load which must be taken into account; this increases as the angle between the legs increases.
Due to the possibility of sparking, the use of aluminium is restricted in certain classified atmospheres, so ensure the ferrule is suitable for such conditions.
Always consult the supplier before using wire rope slings at extreme temperatures (above 100°C or below -40°C) or in environments where they may contact acids or chemicals.
Never return damaged or contaminated slings to storage. They should be dry, clean and protected from corrosion.
Store wire rope slings on a rack and not lying on the ground. The storage area should be dry and free of any contaminants which may harm the sling.
Do not alter, modify or repair a wire rope sling but refer such matters to a Competent Person.
Do not attempt lifting operations unless you understand the use of the equipment, the slinging procedures and the mode factors to be applied.
Do not use defective slings or accessories.
Do not force, hammer or wedge slings or fittings into position. They must fit freely. Check to ensure correct engagement of fittings and appliances.
Position hooks of multi-leg slings facing outward from the load.
Do not lift on the point of a hook.
Ensure that the wire rope is not twisted or knotted.
Ensure the effective diameter of pins, hooks etc upon which soft eyes fit is at least 2 × the wire rope diameter.
Position the splices of endless slings in the standing part of the sling away from hooks and fittings.
Never join wire rope slings made from different lays of rope together as this will cause them to un-lay thus seriously affecting their capacity.
Back hook free legs to the masterlink to avoid lashing legs which might accidentally become engaged or otherwise become a hazard.
Take the load steadily and avoid shock loads.
Do not leave suspended loads unattended. In an emergency cordon off the area.
Maintenance requirements are minimal. Keep wire rope slings clean and protect from corrosion. Use non-acidic lubricants.
Regularly inspect wire rope slings and, in the event of the following defects, refer the sling to a Competent Person for thorough examination:
Wire rope slings should only be used by trained professionals who understand safe usage and handling procedures. Always consult a Competent Person if you have any doubts about the condition or suitability of a sling for a particular application.
