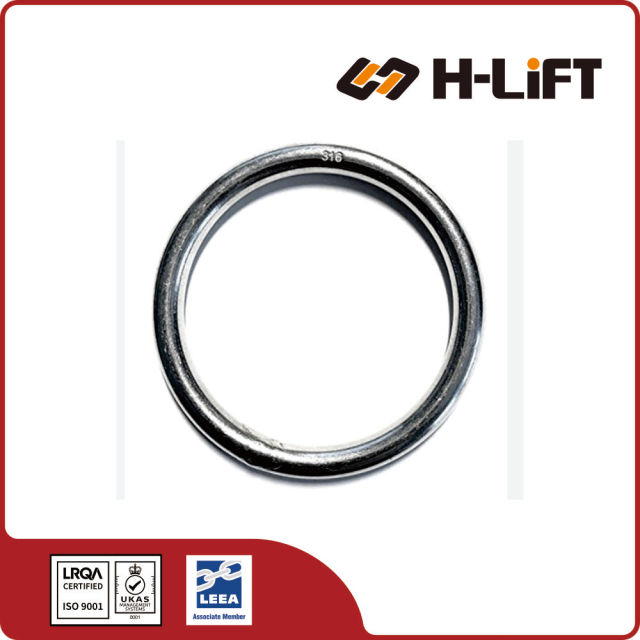

The H-Lift Stainless Steel Welded Round Ring provides a completely closed, load-bearing circle designed for applications requiring superior strength and excellent corrosion resistance.
The Stainless Steel Welded Round Ring (O-Ring) is a versatile, heavy-duty rigging component designed to act as a secure central hub. Featuring a permanently welded joint, it prevents deformation under tension. Available in premium stainless steel grades, it is the perfect solution for marine mooring, architectural netting, and general outdoor rigging where free rotation is required.
Manufactured with a completely welded joint. Unlike un-welded split rings or key rings, these load-bearing rings will not bend or pull open under heavy tension, providing uniform strength in all directions.
AISI 316 (Marine-Grade): Contains molybdenum for superior resistance against saltwater and chloride pitting.
AISI 304: Ideal for inland outdoor use and architectural netting.
The smooth, circular geometry completely lacks corners. This allows attached ropes, carabiners, webbings, and clips to slide and rotate freely around the entire perimeter without snagging or binding.
Highly sought after across a wide variety of industries, serving as reliable anchor points for marine mooring, equestrian tack, safety belts, netting, pet leashes, and general custom rigging.
| Item No. | Dia. x I.L. (mm) | Product Code |
|---|---|---|
| S-WR03025 | 3 x 25 | 704119325 |
| S-WR04025 | 4 x 25 | 704119425 |
| S-WR04030 | 4 x 30 | 704119430 |
| S-WR04040 | 4 x 40 | 704119440 |
| S-WR05030 | 5 x 30 | 704119530 |
| S-WR05040 | 5 x 40 | 704119540 |
| S-WR05050 | 5 x 50 | 704119550 |
| S-WR06030 | 6 x 30 | 704119630 |
| S-WR06040 | 6 x 40 | 704119640 |
| S-WR06050 | 6 x 50 | 704119650 |
| S-WR06060 | 6 x 60 | 704119660 |
