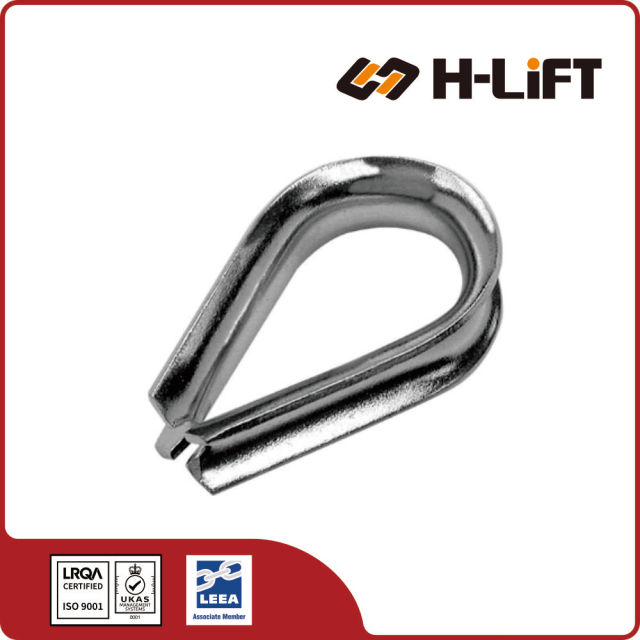

The H-Lift Stainless Steel U.S. Type Standard Duty Wire Rope Thimble meets Federal Specification FF-T-276B Type II standards for light-duty applications. Constructed from AISI 304 or 316 stainless steel with cast or formed design, these thimbles protect wire rope eyes in static, low-load environments, available in sizes from 1/8" to 1".
H-Lift US Type Standard Duty Wire Rope Thimbles are modeled after the G-411 pattern and conform to Federal Specification FF-T-276b Type II. These thimbles are designed to create a rigid steel loop inside the wire rope eye, effectively preventing cable collapse, kinking, and chafing in light-to-medium duty rigging applications.
Conforms to FF-T-276b Type II standards, ensuring perfect compatibility with US-specification rigging hardware.
Premium saltwater resistance for yacht rigging and coastal projects. Also available in AISI 304 for general outdoor use.
Features a precision-pressed shallow groove to seat the wire rope securely without damaging individual wire strands.
Available in a full range of US imperial sizes from 1/8" to 1-1/4" to fit standard diameter stainless steel cables.
Q: What is the difference between G-411 and G-414 thimbles?
A: G-411 is the "Standard" pattern (Type II), which is lighter and used for general rigging. G-414 is the "Extra Heavy Duty" pattern (Type III), featuring thicker steel walls for lifting and high-tension environments.
Q: Does this thimble meet Federal Specifications?
A: Yes, this thimble follows the dimensional requirements of Federal Specification FF-T-276b Type II.
| Item No. | Size (inch) | N.W. (kg) | Product Code | Item No. | Size (inch) | N.W. (kg) | Product Code |
|---|---|---|---|---|---|---|---|
| S-T1108 | 1/8 | 0.015 | 704130108 | S-T1102 | 1/2 | 0.06 | 704130102 |
| S-T1316 | 3/16 | 0.015 | 704130316 | S-T1508 | 5/8 | 0.167 | 704130508 |
| S-T1104 | 1/4 | 0.015 | 704130104 | S-T1304 | 3/4 | 0.262 | 704130304 |
| S-T1516 | 5/16 | 0.019 | 704130516 | S-T1708 | 7/8 | 0.403 | 704130708 |
| S-T1308 | 3/8 | 0.031 | 704130308 | S-T1101 | 1 | 0.476 | 704130101 |
Standard Duty G-411 thimbles are ideal for marine rigging, light towing, architectural displays, and static guy lines. They are not recommended for heavy-duty overhead lifting or high-load industrial tensioning. For those applications, please use our G-414 Extra Heavy Duty thimbles.
