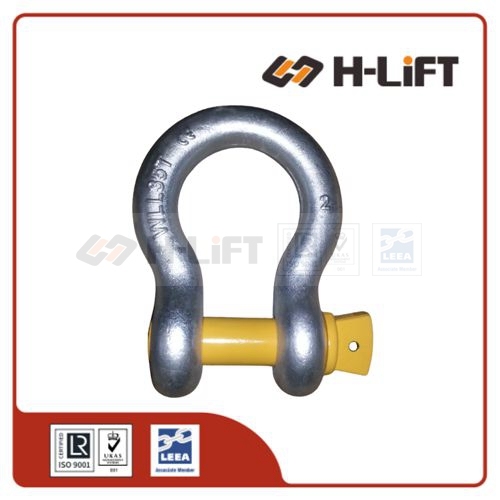

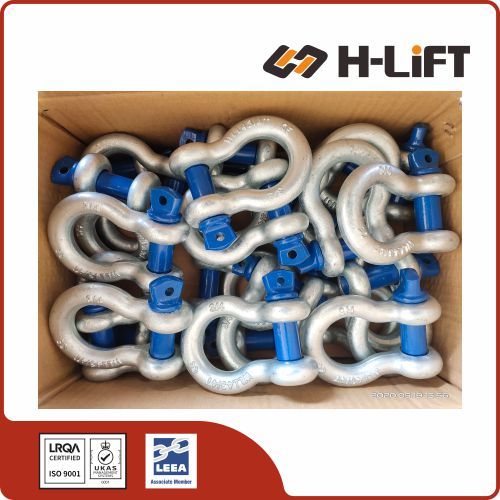

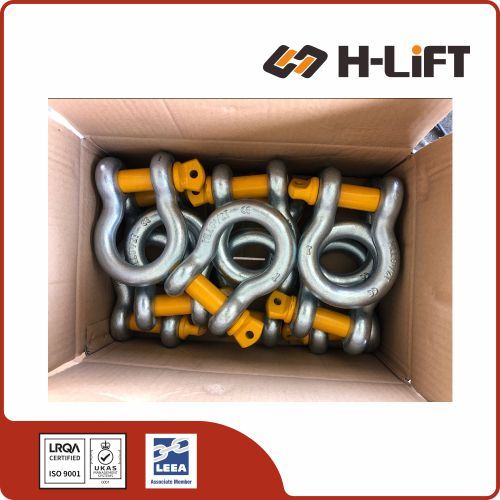

The Screw Pin Anchor Shackle, commonly referred to as a Bow Shackle, is a versatile rigging connector featuring a wide, rounded body designed to accommodate multi-directional loading and multiple sling legs.
Unlike D-Shackles, Anchor (Bow) Shackles are designed to handle loads from the side. However, the Working Load Limit (WLL) must be reduced according to the angle.
| Angle from Vertical (In-Line) | Adjusted WLL (Remaining Capacity) |
|---|---|
| 0° - 5° | 100% of Rated WLL |
| 45° | 70% of Rated WLL |
| 90° | 50% of Rated WLL |
*Refer to table below for dimensions A-L
| Item No. | Size (inch) |
WLL (ton) |
Dimensions (mm) | Weight (kg) |
Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | L | |||||
| SH01005 | 3/16" | 1/3 | 9.7 | 6.4 | 22.4 | 4.8 | 15.2 | 37.3 | 0.022 | 701001005 |
| SH01006 | 1/4" | 1/2 | 11.9 | 7.9 | 28.7 | 6.4 | 19.8 | 46.7 | 0.05 | 701001006 |
| SH01008 | 5/16" | 3/4 | 13.5 | 9.7 | 31 | 7.9 | 21.3 | 53 | 0.08 | 701001008 |
| SH01010 | 3/8" | 1 | 16.8 | 11.2 | 36.6 | 9.7 | 26.2 | 63 | 0.135 | 701001010 |
| SH01011 | 7/16" | 1-1/2 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 74 | 0.195 | 701001011 |
| SH01013 | 1/2" | 2 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 83.5 | 0.3 | 701001013 |
| SH01016 | 5/8" | 3-1/4 | 26.9 | 19.1 | 60.5 | 15.7 | 42.9 | 106 | 0.61 | 701001016 |
| SH01019 | 3/4" | 4-3/4 | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 126 | 1.03 | 701001019 |
| SH01022 | 7/8" | 6-1/2 | 36.6 | 25.4 | 84 | 22.4 | 58 | 148 | 1.6 | 701001022 |
| SH01025 | 1" | 8-1/2 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 167 | 2.3 | 701001025 |
| SH01029 | 1-1/8" | 9-1/2 | 46 | 31.8 | 108 | 29.5 | 74 | 190 | 3.2 | 701001029 |
| SH01032 | 1-1/4" | 12 | 51.5 | 35.1 | 119 | 32.8 | 82.5 | 210 | 4.4 | 701001032 |
| SH01035 | 1-3/8" | 13-1/2 | 57 | 38.1 | 133 | 36.1 | 92 | 233 | 6.2 | 701001035 |
| SH01038 | 1-1/2" | 17 | 60.5 | 44.5 | 146 | 38.9 | 98.5 | 254 | 7.8 | 701001038 |
| SH01044 | 1-3/4" | 25 | 73 | 51 | 178 | 46.7 | 127 | 313 | 13.8 | 701001044 |
| SH01050 | 2" | 35 | 82.5 | 57 | 197 | 52.8 | 146 | 348 | 20.5 | 701001050 |
| SH01063 | 2-1/2" | 55 | 105 | 70 | 267 | 69.1 | 184 | 453 | 39 | 701001063 |

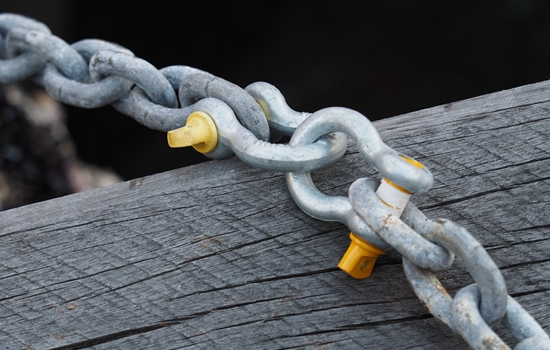

Type: Use Anchor (Bow) shackles for multi-leg systems or where side loading may occur. Use Chain (Dee) shackles for straight-line pulls.
Pin Type:
• Screw Pin: Suitable for general, non-permanent purposes.
• Bolt Type (Safety Pin): Essential for long-term installations or where the pin may rotate under load.
Avoid Side Loading: Position the shackle so the body takes the load along its center line. Use spacers if necessary to center the load on the pin.
Tightening: Tighten screw pins by hand, then lock with a small bar. Do not overtighten to the point of deforming the body. For bolt types, ensure the split cotter pin is fitted.
Choke Hitches: Place the pin through the eye of the sling. Never place the pin in contact with the "bight" of the choke or moving parts, as friction can unscrew the pin.
Storage: Store in a clean, dry place protected from corrosion. Never modify or galvanize a shackle without supplier approval.
Inspection: Check regularly for: distorted/stretched bodies, bent pins, damaged threads, nicks, gouges, or corrosion. illegible markings. If any defect is found, refer to a Competent Person.
