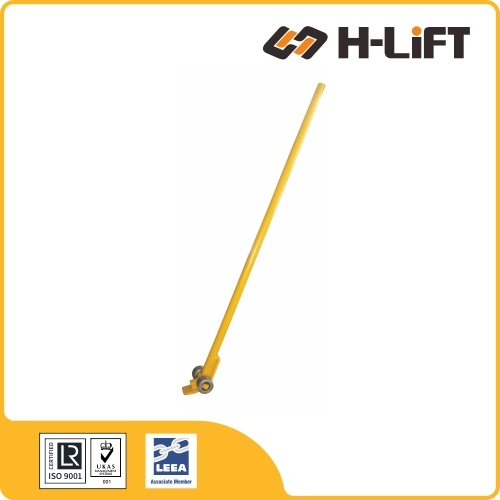

Roller Crowbar RC type

No.801009

The H-Lift Roller Crowbar RC type is a robust steel levering tool designed to lift heavy loads for the insertion of skates or jacks. Combining a long handle for maximum leverage with dual steel rollers for mobility, this durable pry bar allows users to safely lift and position machinery or packing cases weighing up to 5 tons with minimal effort.

  • Available Capacities: 1.5 ton (RC15), 3 ton (RC30), and 5 ton (RC50)
  • Extra-long steel handle (up to 2000mm) maximizes leverage
  • Dual smooth-running steel rollers for easy positioning
  • Low-profile lifting toe fits under tight clearances
  • Ideal for lifting machinery to insert transport skates

Technical Data

The Roller Crowbar (RC Series) is the essential partner for any machinery moving project. Designed to provide the initial lift, it allows operators to easily slide Machine Skates or Toe Jacks underneath heavy equipment. With extra-long handles for maximum leverage, a single person can lift up to 5 Tonnes.

💪 Maximum Leverage

Features extra-long steel handles (up to 1530mm) that deliver exceptional leverage, allowing minimal effort to lift heavy loads.

⚙️ Smooth Positioning

Unlike standard pry bars, built-in dual steel rollers allow the bar to glide smoothly, making micro-adjustments to machine positioning easy.

🛠️ Robust Construction

Made from high-strength seamless steel tubing. Offers a high strength-to-weight ratio (only 11kg for the 5T model) for durability without bulk.

🛡️ Safety First

The long handle keeps the operator at a safe distance from the load, significantly reducing the risk of injury during the initial lifting phase.

Usage Guide: How to use with Machine Skates
  1. Insert: Place the toe of the Roller Crowbar under the edge of the machinery.
  2. Lift: Push down on the long handle to leverage the machine up (max lift height 100mm).
  3. Slide: While raised, have a second person slide the Load Moving Skate underneath.
  4. Lower: Gently release the handle to lower the machine onto the skate.
  5. Repeat: Repeat for all corners until the machine is fully supported.
Pro Tip: For very heavy loads (>5 Tons) or where higher clearance is needed, consider using a Hydraulic Toe Jack instead.

Technical Specifications

Item No. Capacity (t) Dimensions (mm) Weight (kg) Product Code
Length Lift Height Roller Size
RC030 3 1400 100 62 8 801009003
RC050 5 1530 100 72 11 801009005
