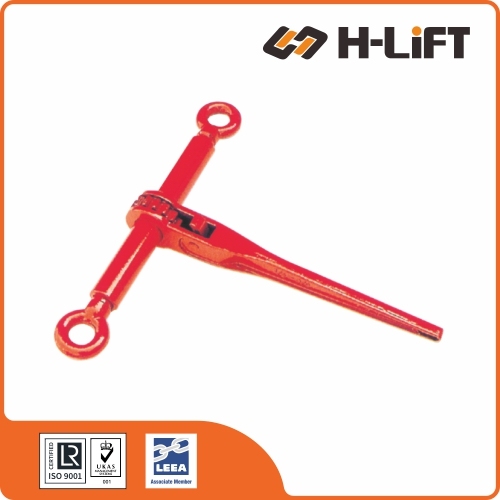

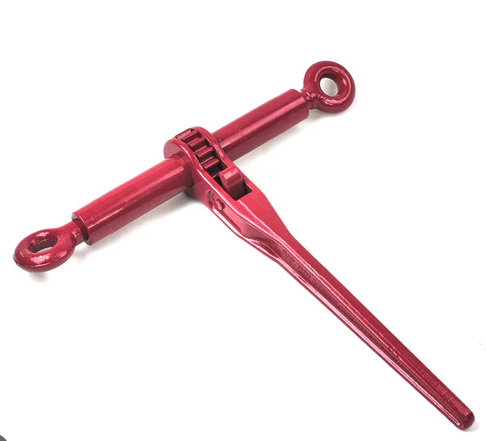

The Ratchet Type Load Binder without Link or Hook (RLBW Type) is a bare-body, mechanical chain tensioner that provides operators with precise control over lashing forces, designed to be customized with the user's preferred end fittings.

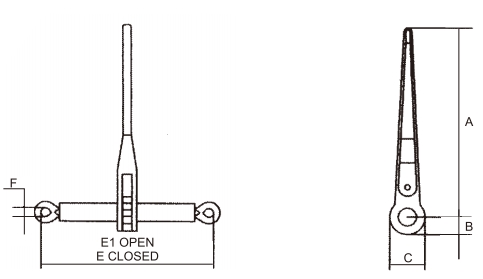

*Refer to table below for dimensions A-F
| Item No. | Chain Size (inch) |
WLL (lbs) |
Proof Load (lbs) |
MBL (lbs) |
Weight (lbs) |
Handle (inch) |
Dimensions (inch) | Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | E | E1 | F | ||||||||
| RLBW10 | 5/16 - 3/8 | 5,400 | 10,800 | 19,000 | 7.8 | 13.42 | 13.92 | 1.3 | 2.6 | 13.7 | 21.7 | 0.79 | 411002038 |
| RLBW13 | 3/8 - 1/2 | 9,200 | 18,400 | 33,000 | 7.8 | 13.92 | 13.92 | 1.3 | 2.6 | 13.7 | 21.7 | 1.02 | 411002012 |
| RLBW16 | 1/2 - 5/8 | 13,000 | 26,000 | 46,000 | 8.5 | 13.92 | 13.92 | 1.3 | 2.6 | 14.17 | 22.17 | 1.02 | 411002058 |
