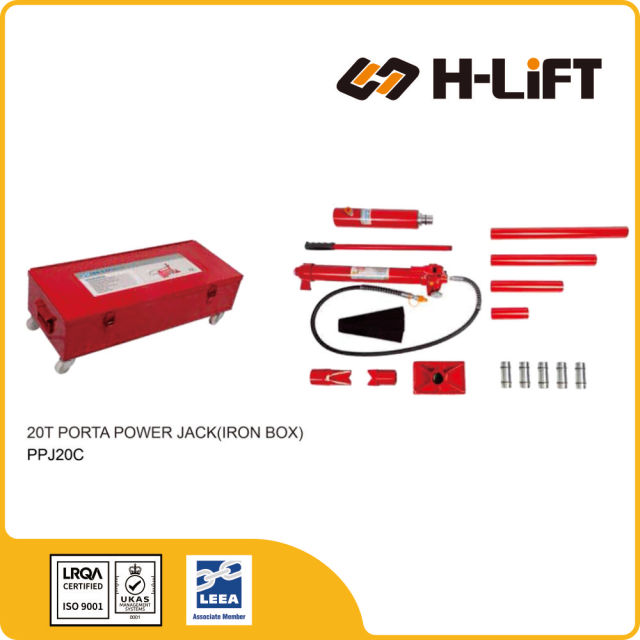

The H-Lift Porta Power Jack 20T is a complete hydraulic body repair kit for lifting, pushing, spreading, and straightening in automotive collision repair and heavy equipment maintenance.
The 20 Ton Porta Power Jack is a comprehensive hydraulic repair kit designed for heavy-duty applications. Delivering a massive 20 tons of force, it is the ultimate tool for frame straightening, truck repairs, and industrial lifting. The kit comes packed in a rugged iron box for secure storage and transport.
Delivers immense hydraulic force suitable for bending heavy frames, pushing, pulling, and spreading in industrial and automotive truck repair settings.
Includes a heavy-duty hydraulic pump, ram, high-pressure hose, and a variety of extensions and attachments for versatile positioning.
Comes packed in a durable Metal Case (Iron Box) to keep heavy components organized and protected during transport to job sites.
The hydraulic system allows for smooth, controlled application of force, which is crucial for delicate frame alignment and dent repair tasks.
| Part No. | Description (Part Name) | Qty |
|---|---|---|
| 01 | Hydraulic Hand Pump (Heavy Duty) | 1 |
| 02 | Pump Handle | 1 |
| 03 | Hydraulic Ram (20 Ton Cylinder) | 1 |
| 04 | High Pressure Hydraulic Hose | 1 |
| 05 | Extension Tube - Short (100mm) | 1 |
| 06 | Extension Tube - Medium (300mm) | 1 |
| 07 | Extension Tube - Long (500mm) | 1 |
| 08 | Male Connector (Extension Joiner) | 1 |
| 09 | Flat Base Plate | 1 |
| 10 | 90° V-Base | 1 |
| 11 | Wedge Head | 1 |
| 12 | Plunger Toe | 1 |
| 13 | Ram Toe | 1 |
| 14 | Serrated Saddle | 1 |
| 15 | Rubber Flex Head | 1 |
| 16 | Lock Pin / Connector Pin | 1 |
| 17 | Oil Seal Kit (Spare) | 1 |
| 18 | Metal Carry Case (Iron Box) | 1 |
| Item No. | Capacity (t) |
Min. Height (mm) |
Lifting Range (mm) |
Package Size (cm) |
Weight (kg) |
Product Code |
|---|---|---|---|---|---|---|
| PPJ20C | 20 | 385 | 145 | 760 x 330 x 260 | 41 | 810301006 |
Jacks may be hydraulic or mechanical in operation and are available in a wide range of capacities and designs. Proper selection is critical for safety.
Multiple Jacks: Most operations require multiple jacks. It is impossible to raise/lower them in perfect unison, causing uneven loading. Ensure jack capacity is adequate to handle load transfer. Keep the load level.
Floor Stability: Ensure the floor can withstand the point load. Use floor plates to spread the load if necessary. Avoid buried cables or pipes.
Contact: The jack head must be in full, firm contact with the jacking point. Use packers to prevent slipping.
Store jacks upright with the ram/rack/screw fully lowered to protect them from damage. Remove handles/levers and store separately. Never store damaged jacks.
Clean jacks regularly to remove dirt from racks, screws, and seals. Check hydraulic oil levels. Lubricate moving mechanical parts.
Defects to Watch For:
