The H-Lift Porta Power Jack 10T is a portable hydraulic repair kit for lifting, pushing, bending, and straightening tasks in automotive bodywork and general maintenance applications.
The 10 Ton Porta Power Jack is a versatile hydraulic body repair kit, indispensable for lifting, pushing, pulling, bending, straightening, and spreading tasks in auto body shops and construction. Available with either a lightweight blow mold case or a rugged iron box, it offers precise control for frame alignment and structural repairs.
Delivers 10 Tons of hydraulic power, ideal for frame straightening, dent removal, and general structural alignment on vehicles and machinery.

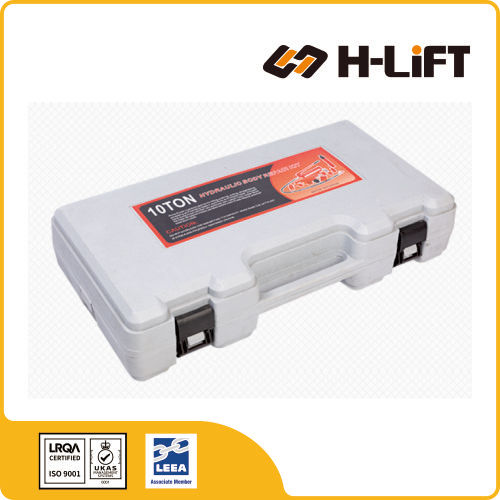

PPJ10B: Durable Blow Mold Case for portability.

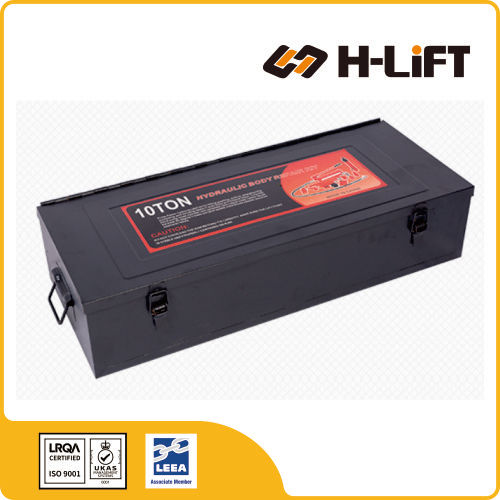

PPJ10C: Rugged Iron Box (Metal Case) for harsh industrial environments.

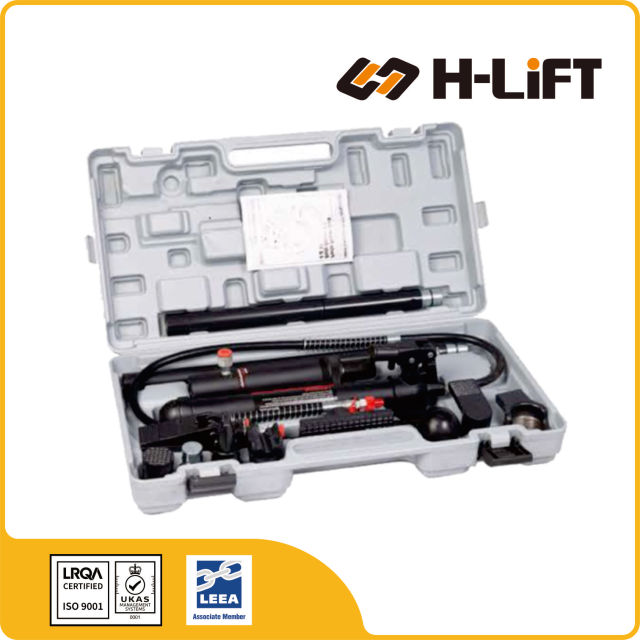

Includes pump, ram, hose, spreader, and a comprehensive set of extension tubes and connectors for reaching tight spaces.
Features a snap-lock design on extension tubes for quick, tool-free assembly and dismantling, improving workshop efficiency.
| Part No. | Description (Part Name) | Qty |
|---|---|---|
| 01 | Hydraulic Hand Pump (10 Ton) | 1 |
| 02 | Hydraulic Ram (10 Ton Cylinder) | 1 |
| 03 | High Pressure Hose | 1 |
| 04 | 0.5 Ton Hydraulic Spreader | 1 |
| 05 | Extension Tube (125mm / 5") | 1 |
| 06 | Extension Tube (250mm / 10") | 1 |
| 07 | Extension Tube (350mm / 14") | 1 |
| 08 | Extension Tube (485mm / 19") | 1 |
| 09 | Male Connector | 1 |
| 10 | Flat Base | 1 |
| 11 | 90° V-Base | 1 |
| 12 | Wedge Head | 1 |
| 13 | Plunger Toe | 1 |
| 14 | Ram Toe | 1 |
| 15 | Rubber Flex Head | 1 |
| 16 | Serrated Saddle | 1 |
| 17 | Case (Blow Mold or Iron Box) | 1 |
| Item No. | Capacity (t) |
Min. Height (mm) |
Lifting Range (mm) |
Package Size (cm) |
Weight (kg) |
Product Code |
|---|---|---|---|---|---|---|
| PPJ10B | 10 | 358 | 135 | 745x405x185 | 30 | 810301003 |
| PPJ10C | 10 | 358 | 135 | 745x330x170 | 30 | 810301004 |
Jacks may be hydraulic or mechanical in operation and are available in a wide range of capacities and designs. Proper selection is critical for safety.
Multiple Jacks: Most operations require multiple jacks. It is impossible to raise/lower them in perfect unison, causing uneven loading. Ensure jack capacity is adequate to handle load transfer. Keep the load level.
Floor Stability: Ensure the floor can withstand the point load. Use floor plates to spread the load if necessary. Avoid buried cables or pipes.
Contact: The jack head must be in full, firm contact with the jacking point. Use packers to prevent slipping.
Store jacks upright with the ram/rack/screw fully lowered to protect them from damage. Remove handles/levers and store separately. Never store damaged jacks.
Clean jacks regularly to remove dirt from racks, screws, and seals. Check hydraulic oil levels. Lubricate moving mechanical parts.
Defects to Watch For:
