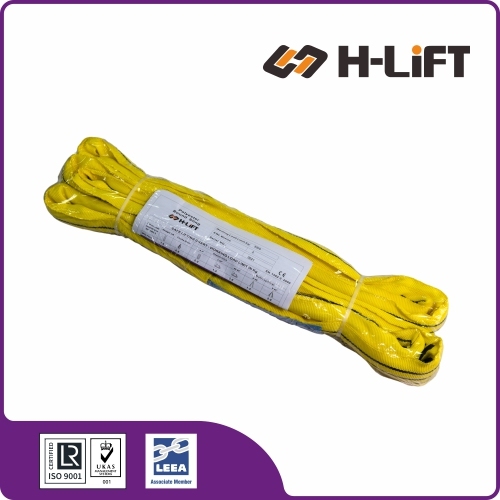

The Polyester Round Sling (EN 1492-2) is a highly versatile, endless textile lifting sling designed to safely and securely handle heavy loads while protecting delicate surfaces during overhead lifting.
Engineered for professional heavy lifting, our endless round slings consist of a continuous loop of load-bearing polyester yarn encased in a robust tubular sleeve. This structure enables the yarn fibers to spread out securely over the load surface, cushioning the cargo against damage and preventing slip. Exceptionally lightweight and highly flexible.
Measure from bearing point to bearing point when the sling is laid completely flat. This is known as the Effective Working Length (EWL).
Slings can be equipped with RFID chips upon request to streamline digital asset tracking, inventory management, and mandatory safety inspections.
| Item No. | Color Code (EN 1492-2) |
Working Load Limits in Tonnes (by Hitch Type) | Product Code | ||||
|---|---|---|---|---|---|---|---|
| Straight Lift | Choked Lift | Basket Hitch (Angle β) | |||||
 Vertical (M=1) |
 Choked (M=0.8) |
 Parallel (M=2) |
 0˚-45˚ (M=1.4) |
 45˚-60˚ (M=1) |
|||
| RS01-001 |
1t / Violet
|
1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 307001001 |
| RS01-002 |
2t / Green
|
2.0 | 1.6 | 4.0 | 2.8 | 2.0 | 307001002 |
| RS01-003 |
3t / Yellow
|
3.0 | 2.4 | 6.0 | 4.2 | 3.0 | 307001003 |
| RS01-004 |
4t / Grey
|
4.0 | 3.2 | 8.0 | 5.6 | 4.0 | 307001004 |
| RS01-005 |
5t / Red
|
5.0 | 4.0 | 10.0 | 7.0 | 5.0 | 307001005 |
| RS01-006 |
6t / Brown
|
6.0 | 4.8 | 12.0 | 8.4 | 6.0 | 307001006 |
| RS01-008 |
8t / Blue
|
8.0 | 6.4 | 16.0 | 11.2 | 8.0 | 307001008 |
| RS01-010 |
10t / Orange
|
10.0 | 8.0 | 20.0 | 14.0 | 10.0 | 307001010 |
| RS01-012 |
12t / Orange
|
12.0 | 9.6 | 24.0 | 16.8 | 12.0 | 307001012 |
| RS01-015 |
15t / Orange
|
15.0 | 12.0 | 30.0 | 21.0 | 15.0 | 307001015 |
| RS01-020 |
20t / Orange
|
20.0 | 16.0 | 40.0 | 28.0 | 20.0 | 307001020 |
| RS01-025 |
25t / Orange
|
25.0 | 20.0 | 50.0 | 35.0 | 25.0 | 307001025 |
| RS01-030 |
30t / Orange
|
30.0 | 24.0 | 60.0 | 42.0 | 30.0 | 307001030 |
| RS01-035 |
35t / Orange
|
35.0 | 28.0 | 70.0 | 49.0 | 35.0 | 307001035 |
| RS01-040 |
40t / Orange
|
40.0 | 32.0 | 80.0 | 56.0 | 40.0 | 307001040 |
| RS01-045 |
45t / Orange
|
45.0 | 36.0 | 90.0 | 63.0 | 45.0 | 307001045 |
| RS01-050 |
50t / Orange
|
50.0 | 40.0 | 100.0 | 70.0 | 50.0 | 307001050 |
| RS01-060 |
60t / Orange
|
60.0 | 48.0 | 120.0 | 84.0 | 60.0 | 307001060 |
| RS01-080 |
80t / Orange
|
80.0 | 64.0 | 160.0 | 112.0 | 80.0 | 307001080 |
| RS01-100 |
100t / Orange
|
100.0 | 80.0 | 200.0 | 140.0 | 100.0 | 307001100 |
| RS01-120 |
120t / Orange
|
120.0 | 96.0 | 240.0 | 168.0 | 120.0 | 307001120 |
| RS01-200 |
200t / Orange
|
200.0 | 160.0 | 400.0 | 280.0 | 200.0 | 307001200 |
H-Lift Round Slings, manufactured to EN 1492-2, provide a versatile, lightweight, and cost-effective solution for heavy lifting. This guide outlines the essential safety practices, product features, and maintenance requirements to ensure safe operations.
The soft polyester sleeve cushions the load, making round slings ideal for lifting fragile, polished, or easily marred surfaces where chain or wire rope might cause damage.
Made from high-tenacity polyester (PES) yarn continuously wound in an endless loop. They offer immense lifting capacity while being extremely lightweight and easy to handle.
Fully compliant with EN 1492-2 international standards. Each sling is color-coded by tonnage (e.g., Violet=1T, Green=2T) with capacity stripes for instant identification.
The endless loop construction allows for rotation of load-bearing points, extending the sling's service life by avoiding constant wear on a single spot.
Safety is paramount in lifting operations. Failure to follow these guidelines can result in sling failure, load damage, or injury.
Regular inspection is critical. A round sling must be removed from service immediately if any of the following are detected:
Note: Minor chafing on the outer cover surface is normal, but deep abrasion requires assessment by a competent person.
