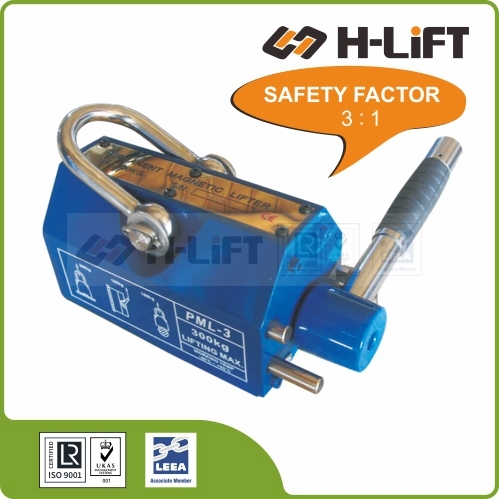

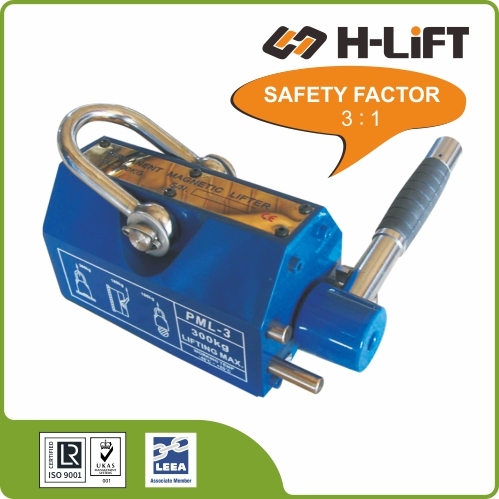

The H-Lift Permanent Magnetic Lifter (PML-L Type) is a highly efficient, below-the-hook device designed to safely grip, hold, and maneuver heavy loads with ferromagnetic properties without requiring external power.
The PML-L series utilizes high-energy Neodymium (NdFeB) magnetic materials to deliver immense lifting power in a compact, lightweight housing. Requiring no electrical power, these lifters completely eliminate the risk of load drops due to power failures. Designed for ultimate versatility, they are ideal for lifting, moving, and positioning heavy steel plates, blocks, and cylindrical materials.
| Item No. | Rated Lifting Strength | Max Pull-off Strength |
Main Dimensions | Max Temp |
Net Weight |
Product Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Flat | Round | L (Length) | B (Width) | H (Height) | R (Handle) | |||||
| (kgf) | (kgf) | (kg) | (mm) | (mm) | (mm) | (mm) | (℃) | (kg) | ||
| PML01L | 100 | 30 | 300 | 92 | 64 | 70 | 142 | <80 | 3.0 | 180430001 |
| PML02L | 200 | 60 | 600 | 114 | 72 | 86 | 142 | <80 | 5.0 | 180430002 |
| PML03L | 300 | 100 | 900 | 165 | 88 | 96 | 176 | <80 | 10.0 | 180430003 |
| PML05L | 500 | 150 | 1500 | 210 | 92 | 96 | 208 | <80 | 12.5 | 180430005 |
| PML06L | 600 | 200 | 1800 | 216 | 118 | 120 | 219 | <80 | 20.0 | 180430006 |
| PML10L | 1000 | 300 | 3000 | 264 | 148 | 140 | 266 | <80 | 37.0 | 180430010 |
| PML15L | 1500 | 500 | 4500 | 308 | 172 | 168 | 285 | <80 | 62.0 | 180430015 |
| PML20L | 2000 | 600 | 6000 | 397 | 172 | 168 | 380 | <80 | 80.0 | 180430020 |
| PML30L | 3000 | / | 9000 | 443 | 226 | 217 | 512 | <80 | 160.0 | 180430030 |
| PML50L | 5000 | / | 15000 | 582 | 290 | 265 | 627 | <80 | 320.0 | 180430050 |
| PML60L | 6000 | / | 18000 | 713 | 290 | 265 | 707 | <80 | 398.0 | 180430060 |
Magnetic lifters are versatile tools for handling steel plates, blocks, and rounds. They can be used as general-purpose accessories or dedicated to specific applications. However, proper selection is critical for safety.
⚠️ CRITICAL SAFETY NOTE:
Not every load with ferromagnetic properties can be safely handled. The lifting capacity is significantly affected by the thickness, surface finish (air gap), and chemical composition of the load.
*Diagram illustrating how V-slots concentrate magnetic flux for round loads.
The shape of the magnet face must match the load:
For long or flexible plates that may peel off a single magnet, use an arrangement of several magnets in conjunction with a spreader beam. Ensure the magnets are spaced to provide adequate support along the entire length to prevent sagging.
Lifting magnets are normally rated for lifting a horizontal load in the vertical plane only. If the line of pull is not perpendicular (at right angles) to the load surface, the lifting capacity is substantially reduced, and slippage may occur.
When selecting a magnetic lifter, evaluate the following 11 points:
