Designed for stable, linear transport, the H-Lift MSF series prioritizes directional control for heavy industrial loads. Its rigid configuration eliminates steering complexity to prevent drift, ensuring safe and precise relocation of machinery along straight paths in warehouses and factories.

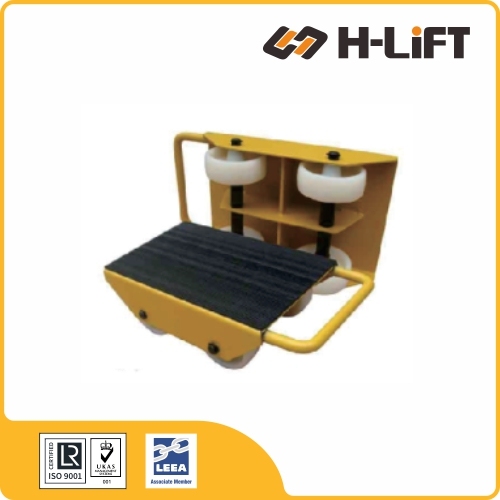

The MSF Series Fixed Load Skates are designed for rigid support and precise straight-line tracking. Typically used as the rear component in a 3-point moving system, they work in tandem with steerable front skates to transport heavy machinery safely and efficiently.
Fixed-direction rollers provide rigid support, ensuring the load follows a predicted path without drifting sideways.
Fitted with wide Nylon or PU rollers that distribute weight evenly, preventing damage to expensive epoxy, concrete, or tiled floors.
Low-profile design (100-120mm height) fits easily under machines lifted by toe jacks. The welded steel frame ensures durability.
Features a high-friction rubber surface on top to grip the load securely, preventing slippage during transport.
Recommended Configuration:
This setup provides steering control from the front handle while rear skates follow smoothly.
| Item No. | Capacity (t) | No. of Rollers | No. of Axles | Roller Size (mm) (Ø x W) |
Skate Size (mm) (L x W x H) |
Weight (kg) | Product Code |
|---|---|---|---|---|---|---|---|
| MSF010 | 1 | 4 | 2 | 100 x 36 | 343x215x120 | 7 | 801003010 |
| MSF020 | 2 | 8 | 2 | 100 x 36 | 343x215x120 | 8 | 801003020 |
| MSF025 | 2.5 | 2 | 2 | 85 x 90 | 330x130x110 | 4.4 | 801003025 |
| MSF030 | 3 | 4 | 2 | 85 x 90 | 343x215x110 | 8.4 | 801003030 |
| MSF060 | 6 | 6 | 3 | 85 x 90 | 415x215x100 | 12 | 801003060 |
Load moving skates, also known as machinery skates or equipment skates, are specialized tools designed for moving heavy loads horizontally. These skates are particularly useful in industrial and commercial settings where the relocation of heavy machinery or equipment is required.
They effectively reduce the need for cranes or forklifts in confined spaces and are typically used in conjunction with other lifting equipment, such as hydraulic jacks (toe jacks), to facilitate the loading process.
Common Applications:
The platform is constructed of sturdy steel to withstand heavy loads. The low-profile design ensures stability while maximizing overhead clearance.
Wheels vary in number and arrangement (e.g., square pattern or multi-row) to increase stability. Made from Nylon (for floor protection) or Steel (for durability).
Many models feature swivel casters or a turntable top, allowing for easy turning and positioning in tight spaces.
Some skates include a handle or pulling bar for manual push/pull operation. Adjustable models allow users to change connecting bar spacing for different load sizes.
| Type | Movement | Typical Application |
|---|---|---|
| Fixed Skates (Straight-Running) |
Moves in a straight line only. | Used under the rear of the load for stability. |
| Steerable Skates (Swivel) |
Rotating top plate allows turning. | Used at the front of the load for steering control. |
| Adjustable Skates | Connecting bars adjust width. | Accommodating loads of varying widths and sizes. |
| Powered Skates | Motor-driven (Electric/Pneumatic). | Precise movement of extremely heavy loads without manual pushing. |
To ensure safe operation and longevity of the equipment, follow these guidelines:
