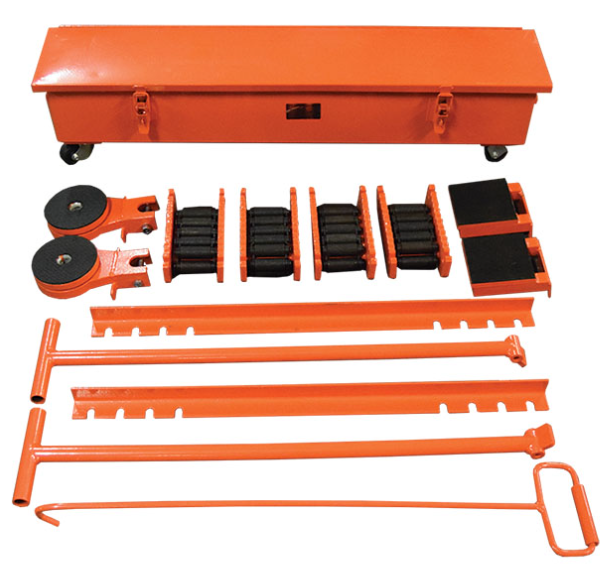

The H-Lift Machine Moving Skate MSK type is a complete roller skate kit engineered for transporting heavy machinery from 20 to 60 tons. This comprehensive set includes four roller skates with chain rollers for high stability, combined with steerable turntables and positioning handles to enable precise straight-line and rotational movement. Packaged in a durable metal box, it provides a versatile, low-profile solution for installing or relocating equipment in tight industrial spaces.

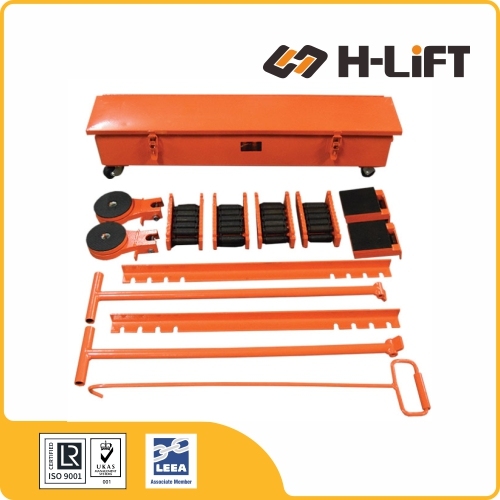

The MSK Series Machinery Movers are supplied as a complete, all-in-one kit housed in a durable metal case. Designed for moving extreme loads ranging from 20 to 60 tonnes, these kits provide everything required for immediate operation, including rollers, turntables, leveling plates, and steering handles.
Comes as a complete kit in a steel case. Includes 4 rollers, turntables, leveling plates, and handles. No need to purchase separate components.
Engineered for loads from 20 Tonnes up to 60 Tonnes. The steel chain rollers withstand high point loading without deformation.

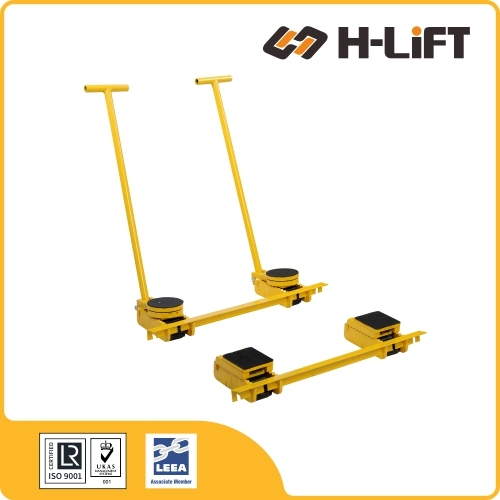

Includes 2 swiveling turntables and steering handles, allowing for precise maneuverability when positioning massive machinery in tight spaces.
With a height as low as 108mm, these skates are stable and easy to position under equipment with limited ground clearance.
| Item No. | Load Capacity (t) | Leveling Plate (mm) | Height (mm) | Roller Dia. (mm) | Turntable (mm) | Total Weight (kg) | Product Code | |
|---|---|---|---|---|---|---|---|---|
| Length | Width | |||||||
| MSK20 | 20 | 120 | 120 | 108 | Ø18 | Ø130 | 50 | 801008020 |
| MSK30 | 30 | 120 | 120 | 117 | Ø24 | Ø130 | 58 | 801008030 |
| MSK60 | 60 | 130 | 130 | 140 | Ø30 | Ø150 | 92 | 801008060 |
Load moving skates, also known as machinery skates or equipment skates, are specialized tools designed for moving heavy loads horizontally. These skates are particularly useful in industrial and commercial settings where the relocation of heavy machinery or equipment is required.
They effectively reduce the need for cranes or forklifts in confined spaces and are typically used in conjunction with other lifting equipment, such as hydraulic jacks (toe jacks), to facilitate the loading process.
Common Applications:
The platform is constructed of sturdy steel to withstand heavy loads. The low-profile design ensures stability while maximizing overhead clearance.
Wheels vary in number and arrangement (e.g., square pattern or multi-row) to increase stability. Made from Nylon (for floor protection) or Steel (for durability).
Many models feature swivel casters or a turntable top, allowing for easy turning and positioning in tight spaces.
Some skates include a handle or pulling bar for manual push/pull operation. Adjustable models allow users to change connecting bar spacing for different load sizes.
| Type | Movement | Typical Application |
|---|---|---|
| Fixed Skates (Straight-Running) |
Moves in a straight line only. | Used under the rear of the load for stability. |
| Steerable Skates (Swivel) |
Rotating top plate allows turning. | Used at the front of the load for steering control. |
| Adjustable Skates | Connecting bars adjust width. | Accommodating loads of varying widths and sizes. |
| Powered Skates | Motor-driven (Electric/Pneumatic). | Precise movement of extremely heavy loads without manual pushing. |
To ensure safe operation and longevity of the equipment, follow these guidelines:
