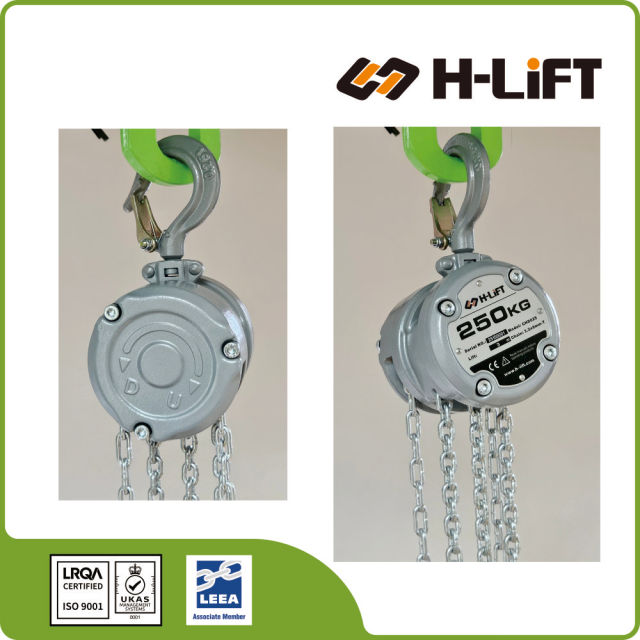

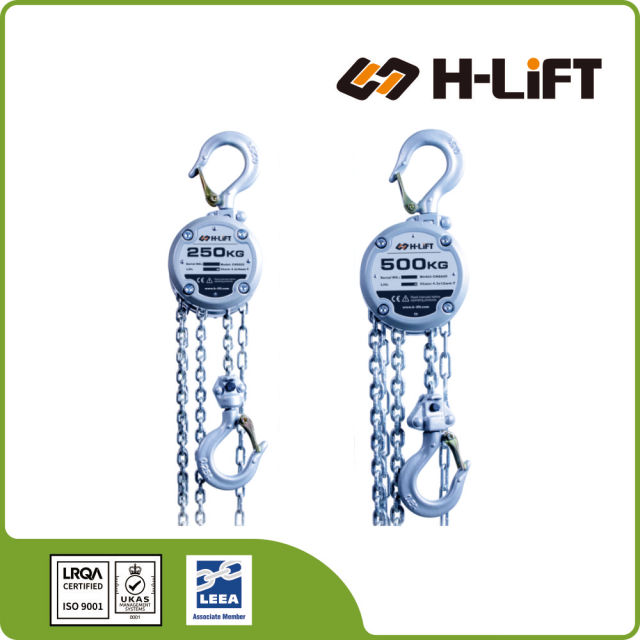

The H-Lift Mini Aluminium Chain Hoist (CH-S Type) is a compact lifting solution designed for maximum portability and efficiency. Featuring an ultra-lightweight aluminium housing, this hoist is ideal for overhead installation and operations in confined spaces where heavy equipment is impractical. Despite its small size, it offers a high strength-to-weight ratio and is available in 250kg and 500kg capacities, ensuring reliable performance for light-duty industrial applications.
Designed for portability and efficiency, this mini chain hoist features an extremely lightweight aluminium housing, making it perfect for overhead work and tight spaces.
*Refer to the diagram above to identify dimensions a (width), b (depth), c min (headroom), and hook dimensions (e, f, g, s, t).
| Item No. | W.L.L. | Std Lift | Proof Load | Effort to Lift | Falls | Load Chain | Dimensions (mm) | N.W. | Extra Wt/m | Product Code | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg) | (m) | (kN) | (daN) | (mm) | a | b | c min | e | f | g | s | t | (kg) | (kg) | |||
| CHS0250 | 250 | 3 | 3.68 | 14.7 | 1 | 3.2x9 | 92 | 84 | 225 | 38 | 53 | 21 | 32 | 11 | 2.6 | 0.4 | 110800250 |
| CHS0500 | 500 | 3 | 7.35 | 18.7 | 1 | 4.3x12 | 106 | 102 | 260 | 44 | 66 | 23 | 35 | 12.5 | 4.8 | 0.6 | 110800500 |
A chain hoist is a mechanical lifting device used to move heavy loads in situations where electric or hydraulic options are not practical. It consists of a chain wound around internal gears, operated by a manual hand chain to lift or lower loads with precision.
Applications: Commonly used in construction, manufacturing, and mining. H-Lift chain hoists are designed to be durable, reliable, and easily operated by a single person. Available in a wide range of lifting capacities (WLL).
Figure 1: Understanding Lift Height & Headroom
