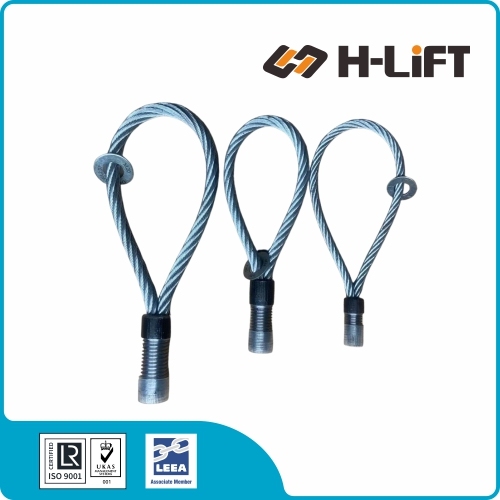

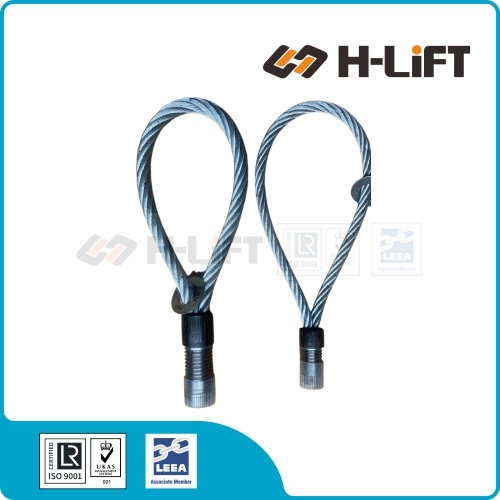

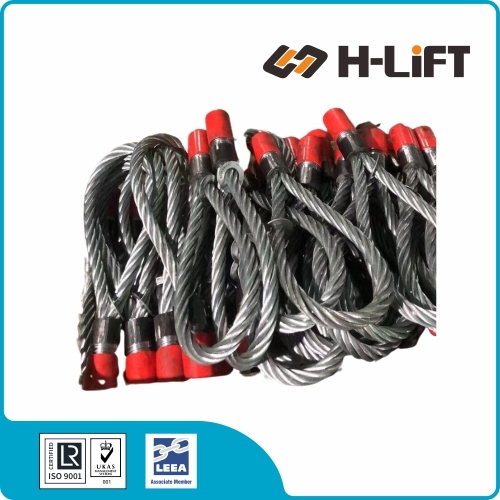

The H-Lift Lifting Loop with Threaded Termination is a flexible and durable lifting device designed specifically for the transport and installation of precast concrete elements. Featuring a robust Rd (Round) thread swaged onto a high-grade steel wire rope loop, it screws directly into cast-in sockets, allowing for lifting at various angles where rigid lifting keys cannot be used.
The Rd Threaded Lifting Loop is a specialized lifting device for the precast concrete industry. Featuring a robust Rd (Round) thread profile, it screws securely into cast-in sockets, providing a safe and flexible lifting point that resists jamming from concrete debris.
Features a coarse, robust Rd Thread profile. Unlike fine M-threads, Rd threads are designed to tolerate concrete residue and dirt without jamming.
Constructed from Galvanized Steel Wire Rope. Allows for flexible lifting angles (unlike rigid eyebolts) without bending or damaging the hardware.
Available in Working Load Limits (WLL) from 0.5 Tonne (Rd12) up to 12.5 Tonne (Rd52) to suit various precast elements.
Includes color-coded identification labels clearly marking the thread size and WLL, ensuring quick selection and safety compliance on site.
Rd=Thread Dia | d=Rope Dia | H=Loop Length | e=Socket Length | f=Thread Length| Item No. | Thread Dia. RD (mm) |
Rope Dia. d (mm) |
Loop Length H (mm) |
WLL (t) |
e (mm) |
f (mm) |
Product Code |
|---|---|---|---|---|---|---|---|
| WRSLR006 | 12 | 6 | 155 | 0.5 | 20 (0/+3) | 35 (-5/+5) | 602005006 |
| WRSLR007 | 14 | 7 | 155 | 0.8 | 24 (0/+3) | 37 (-5/+5) | 602005007 |
| WRSLR008 | 16 | 8 | 165 | 1.2 | 27 (0/+3) | 43 (-5/+5) | 602005008 |
| WRSLR009 | 18 | 9 | 190 | 1.6 | 33 (0/+3) | 49 (-5/+5) | 602005009 |
| WRSLR010 | 20 | 10 | 215 | 2 | 40 (0/+3) | 53 (-5/+5) | 602005010 |
| WRSLR012 | 24 | 12 | 255 | 3 | 42 (0/+3) | 58 (-5/+5) | 602005012 |
| WRSLR016 | 30 | 16 | 300 | 4 | 57 (0/+5) | 78 (-5/+5) | 602005016 |
| WRSLR018 | 36 | 18 | 360 | 6.3 | 63 (0/+5) | 93 (-10/+10) | 602005018 |
| WRSLR020 | 42 | 20 | 425 | 8 | 73 (0/+5) | 105 (-10/+10) | 602005020 |
| WRSLR026 | 52 | 26 | 530 | 12.5 | 90 (0/+5) | 120 (-10/+10) | 602005026 |
