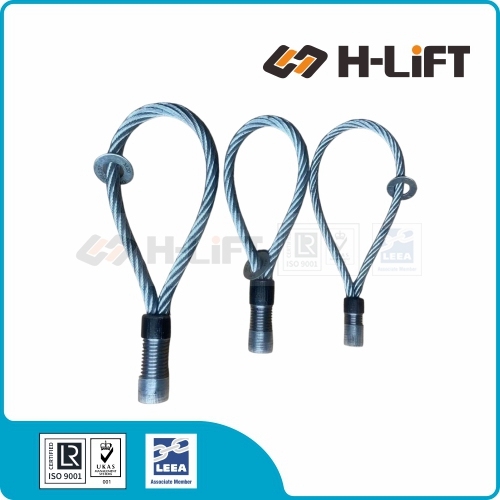

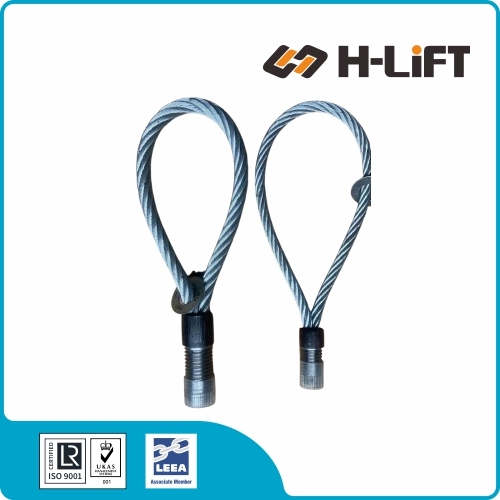

The H-Lift Lifting Loop with Threaded Termination (M-Thread) is a versatile lifting device engineered for the safe transport and placement of precast concrete elements. Distinguished by its Metric (M) thread profile, this loop offers superior compatibility, capable of being screwed into both M-thread and Rd-thread sockets without reduction in load capacity, making it a highly flexible solution for diverse construction sites.
The M-Thread Lifting Loop is a versatile lifting device for precast concrete. Featuring a standard Metric thread, it offers universal compatibility, allowing it to be screwed into both M-thread and Rd-thread lifting sockets, providing maximum flexibility on the job site.
Uniquely designed so that M-threaded loops can be safely screwed into BOTH M-thread and Rd-thread sockets without reducing load capacity.
Constructed from Galvanized Steel Wire Rope. Allows for diagonal lifting angles (up to 45 degrees) that would typically damage rigid eye bolts.
Available in Working Load Limits (WLL) from 0.5 Tonne (M12) up to 12.5 Tonne (M52) to suit various precast elements.
Each unit includes a color-coded tag (plastic or steel) clearly indicating the thread size and WLL for easy inspection and safety compliance.
M=Thread Dia | d=Rope Dia | H=Loop Length | e=Socket Length | f=Thread Length| Item No. | Thread Dia. M (mm) |
Rope Dia. d (mm) |
Loop Length H (mm) |
WLL (t) |
e (mm) |
f (mm) |
Product Code |
|---|---|---|---|---|---|---|---|
| WRSLM006 | M12 | 6 | 155 | 0.5 | 20 (0/+3) | 35 (-5/+5) | 602004006 |
| WRSLM007 | M14 | 7 | 155 | 0.8 | 24 (0/+3) | 37 (-5/+5) | 602004007 |
| WRSLM008 | M16 | 8 | 165 | 1.2 | 27 (0/+3) | 43 (-5/+5) | 602004008 |
| WRSLM009 | M18 | 9 | 190 | 1.6 | 33 (0/+3) | 49 (-5/+5) | 606004009 |
| WRSLM010 | M20 | 10 | 215 | 2 | 40 (0/+3) | 53 (-5/+5) | 602004010 |
| WRSLM012 | M24 | 12 | 255 | 3 | 42 (0/+3) | 58 (-5/+5) | 602004012 |
| WRSLM016 | M30 | 16 | 300 | 4 | 57 (0/+5) | 78 (-5/+5) | 602004016 |
| WRSLM018 | M36 | 18 | 360 | 6.3 | 63 (0/+5) | 93 (-10/+10) | 602004018 |
| WRSLM020 | M42 | 20 | 425 | 8 | 73 (0/+5) | 105 (-10/+10) | 602004020 |
| WRSLM026 | M52 | 26 | 530 | 12.5 | 90 (0/+5) | 120 (-10/+10) | 602004026 |
A wire rope lifting loop with M thread typically refers to a lifting loop or sling made from wire rope that has M threaded terminations on each end. The threaded terminations are typically used to attach the lifting loop to a load or to a lifting device such as a crane or hoist.
The number of threads on the terminations can vary depending on the specific application and load requirements. It is important to ensure that the threads are compatible with the lifting device being used and that the load capacity of the lifting loop is sufficient for the weight of the load being lifted.
It is also important to regularly inspect the lifting loop for signs of wear or damage, and to follow proper lifting procedures to ensure the safety of personnel and equipment.
