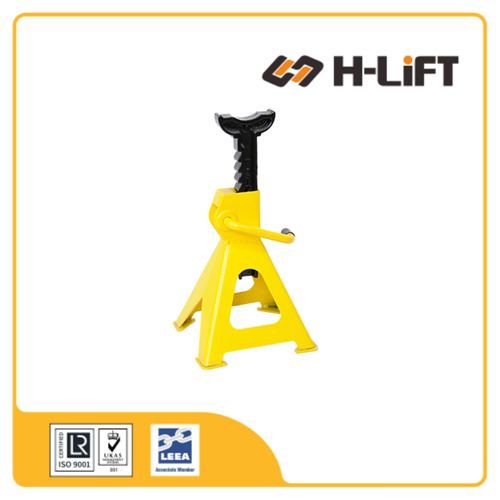

The H-Lift Jack Stand JSA Type is a ratchet-adjustable support stand designed to hold vehicles securely during maintenance, offering capacities from 2 to 12 tonnes for light to medium-duty work.
The JSA Type Jack Stand offers a quick and secure solution for vehicle support. Featuring a ductile iron ratchet bar with multi-position teeth, it allows for fast height adjustment and positive locking. Available in capacities from 2 to 12 tonnes, it's suitable for everything from passenger cars to heavy industrial trucks.
Features a ductile iron ratchet bar for quick height adjustment. The self-locking mechanism engages automatically as the handle is released, preventing accidental lowering.
Available in a wide range of capacities (per pair) to suit any vehicle, from lightweight cars (2 Ton) to heavy commercial trucks (12 Ton).
The steel handle acts as both a lock release mechanism and a convenient carry handle, making it easy to position and transport around the workshop.
Designed with a sturdy welded steel frame and anti-sink feet to provide maximum stability on various surfaces. Large saddles ensure positive contact with the chassis.
| Model | Capacity (t) |
Min. Height (mm) |
Max. Height (mm) |
Weight/pair (kg) |
Product Code |
|---|---|---|---|---|---|
| JSA-02 | 2 | 280 | 425 | 4.6 | 811001002 |
| JSA-03 | 3 | 285 | 425 | 4.7 | 811001003 |
| JSA-06 | 6 | 390 | 595 | 9 | 811001006 |
| JSA-12 | 12 | 482 | 747 | 23.5 | 811001012 |
Jacks may be hydraulic or mechanical in operation and are available in a wide range of capacities and designs. Proper selection is critical for safety.
Multiple Jacks: Most operations require multiple jacks. It is impossible to raise/lower them in perfect unison, causing uneven loading. Ensure jack capacity is adequate to handle load transfer. Keep the load level.
Floor Stability: Ensure the floor can withstand the point load. Use floor plates to spread the load if necessary. Avoid buried cables or pipes.
Contact: The jack head must be in full, firm contact with the jacking point. Use packers to prevent slipping.
Store jacks upright with the ram/rack/screw fully lowered to protect them from damage. Remove handles/levers and store separately. Never store damaged jacks.
Clean jacks regularly to remove dirt from racks, screws, and seals. Check hydraulic oil levels. Lubricate moving mechanical parts.
Defects to Watch For:
Jack stands are critical safety tools designed to support vehicles or heavy loads after they have been lifted by a hydraulic jack. Unlike jacks, which are for lifting, stands provide a rigid, static support platform to ensure the load remains secure during maintenance.
Common Applications:
Essential for preventing accidental lowering. Common types include Ratchet (Pawl) Locks for quick adjustment or Pin Locks for heavy-duty, double-shear security.
Features a central ductile iron column with teeth or pin holes, allowing users to extend the stand to the precise height required to reach vehicle lifting points.
Typically features a wide tripod or quadripod base with welded foot pads to resist sinking into asphalt and provide maximum stability on various surfaces.
Constructed from high-grade steel with a stamped or welded frame to ensure structural integrity and high load-bearing capacity.
To ensure a secure working environment:
Proper Operation: Lift the vehicle with a jack, place stands, and slowly lower the vehicle onto the stands before beginning work.
Maintenance:
| Capacity (Per Pair) | Min. Height | Max. Height | Locking Style |
|---|---|---|---|
| 2 Ton | 260 mm | 420 mm | Ratchet / Pin |
| 3 Ton | 280 mm | 430 mm | Ratchet |
| 6 Ton | 390 mm | 600 mm | Ratchet |
| 12 Ton (Heavy Duty) | 460 mm | 710 mm | Pin / Screw |
