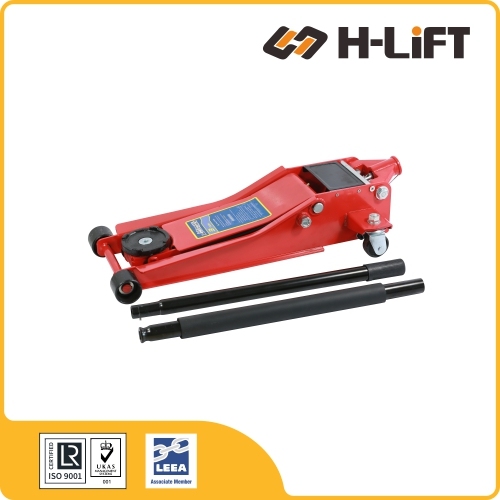

The H-Lift FJP Series Hydraulic Floor Jack is a high-performance, low-profile lifting solution engineered for professional workshop efficiency. Equipped with a dual-piston pump system, it delivers rapid lifting action to reach chassis height quickly, while its ultra-low profile design ensures easy access under sport and custom vehicles. Built with heavy-duty steel and integrated overload protection, this jack guarantees safe and reliable operation for daily automotive maintenance.
The FJP Series is specifically engineered for sports cars and vehicles with reduced ground clearance. Featuring an Ultra-Low Profile design (min. 75mm) and Quick Lift Dual Piston technology, it raises to the chassis point faster and fits where standard jacks cannot.
Designed with a lowered chassis. Minimum height of 75mm (2.25T) or 85mm (2T) allows it to slide easily under sports cars and modified vehicles.
Features a Dual Piston Pump (Twin Piston) system. Raises the saddle to the jacking point in significantly fewer strokes than standard single-pump jacks.
2.25 Ton: Offers an impressive 500mm max lift height.
2 Ton: Lightweight (9.5kg) with a Carry Handle for easy portability.
Reinforced steel frame with 360° rear swivel casters. Built-in Overload Bypass Valve protects the hydraulic system from damage.
| Item No. | Capacity | Min. Height | Lifting Height | Max. Height | N.W. | G.W. | Product Code |
|---|---|---|---|---|---|---|---|
| t | mm | mm | mm | kg | kg | ||
| FJP-200 | 2 | 85 | 240 | 325 | 9.5 | 10 | 808002200 |
| FJP-225 | 2.25 | 75 | 425 | 500 | 32 | 33 | 808002225 |
Jacks may be hydraulic or mechanical in operation and are available in a wide range of capacities and designs. Proper selection is critical for safety.
Multiple Jacks: Most operations require multiple jacks. It is impossible to raise/lower them in perfect unison, causing uneven loading. Ensure jack capacity is adequate to handle load transfer. Keep the load level.
Floor Stability: Ensure the floor can withstand the point load. Use floor plates to spread the load if necessary. Avoid buried cables or pipes.
Contact: The jack head must be in full, firm contact with the jacking point. Use packers to prevent slipping.
Store jacks upright with the ram/rack/screw fully lowered to protect them from damage. Remove handles/levers and store separately. Never store damaged jacks.
Clean jacks regularly to remove dirt from racks, screws, and seals. Check hydraulic oil levels. Lubricate moving mechanical parts.
Defects to Watch For:
A hydraulic floor jack is a heavy-duty lifting device designed to be positioned horizontally on the ground. Unlike vertical bottle jacks, floor jacks feature a horizontal frame with wheels, offering superior maneuverability and ease of positioning under vehicles.
Common Applications:
Many modern models feature a dual pump piston system, which utilizes both the upward and downward strokes of the handle to lift the load faster than traditional single-pump jacks.
Specialized low-profile models are available to fit under sports cars or vehicles with low ground clearance, while High Lift versions provide extra height for trucks.
Equipped with rear swivel casters and a long handle, allowing for precise positioning of the lifting pad under the vehicle's designated lift points.
The lifting pad often rotates 360 degrees, allowing for secure contact with the vehicle chassis regardless of the approach angle.
To prevent accidents and equipment failure:
Regular maintenance extends service life:
| Model Type | Capacity | Min. Height | Max. Height | Application |
|---|---|---|---|---|
| Low Profile | 2 - 3 Ton | 75 mm | 500 mm | Sports Cars, Sedans |
| Standard / Garage | 3 - 4 Ton | 130 mm | 460 mm | SUVs, Light Trucks |
| High Lift | 3 Ton | 190 mm | 800 mm | Off-Road Vehicles, High Chassis |
