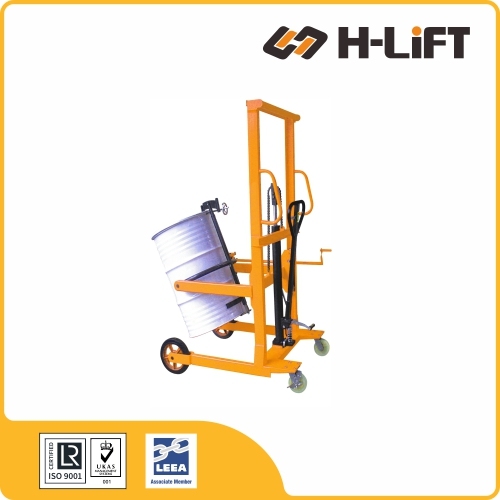

The H-Lift HDL350 Hydraulic Drum Lifter is a specialized material handling device engineered for lifting, tilting, and transporting industrial drums with precision. Capable of lifting 350kg loads to a height of 1425mm, this unit features a unique 180-degree oil roll-over function, allowing for safe and controlled pouring or draining. Its robust manual hydraulic system and ergonomic design make it an essential tool for efficient drum management in warehouses and production facilities.

Lifting capacity of 350kg with a maximum lift height of 1425mm
180-degree drum rotation for easy pouring and dispensing
Manual hydraulic pump for smooth lifting and lowering
Designed for handling standard industrial drums
Sturdy construction with rear wheels for stable maneuverability

Technical Data
Drum Lifter

The HDL350 Hydraulic Drum Lifter is a high-lift solution designed for professional fluid handling. With a 14250mm lifting height, it is specifically engineered for stacking drums or pouring contents into high hoppers and mixers. The integrated gear mechanism allows for precise 180° rotation.

⬆️ High Lift & Pour

Reaches a maximum height of 1425mm, making it perfect for dispensing liquids into elevated vessels or stacking drums.

🔄 180° Rotation

Equipped with a gear mechanism for 180° drum tilting, providing smooth and precise control when pouring valuable or hazardous liquids.

⚙️ Manual Hydraulic

Operated via a robust foot or hand pump. No electricity required. 350kg Working Load Limit suitable for standard 210L (55-gallon) drums.

🚚 Easy Mobility

Features Ø180mm rear wheels and stable front castors. Ergonomic design reduces physical strain and improves workplace safety.

Q: What is the maximum lift height of the HDL350? A: It can lift a drum to 1425mm (measured from the ground to the bottom of the drum/clamp), ideal for high-level pouring.

Q: Can this unit dispense/pour liquids? A: Yes, it features a 180° Oil Roll-over Angle, specifically designed to tilt the drum for controlled dispensing.

Technical Specifications

← Swipe table left and right to view all data →

Item No.	Capacity	Vertical Lifting Range	Level Rise Height	Oil Roll-over Angle	Overall Length	Overall Width	Overall Height	Rear Wheel	Weight	Product Code
Item No.	kg	mm	mm	Oil Roll-over Angle	mm	mm	mm	mm	kg	Product Code
HDL350	350	1425	1325	180°	1190	890	2020	Ø180	160	806001350

Hydraulic Drum Lifters

Safe & Efficient Solutions for Transporting, Stacking, and Pouring Drums

What is a Hydraulic Drum Lifter?

A Hydraulic Drum Lifter is a specialized material handling device designed to lift, transport, stack, or pour industrial drums (such as 55-gallon steel or plastic drums). Unlike manual dollies, these units utilize a hydraulic pump mechanism (foot or hand-operated) to raise heavy drums with minimal operator effort.

They are essential tools in chemical plants, warehouses, and manufacturing facilities, significantly reducing the risk of workplace injuries caused by manually handling heavy liquid-filled drums.

Main Types of Drum Lifters

Choosing the right model depends on your specific application—whether you simply need to move a drum across the floor or lift it high onto a rack.

1. Drum Porter (DT Series)

Best For: Horizontal Transport.

Designed primarily to pick up a drum from the ground and move it to another location. Features a compact design with an "Eagle-grip" or rim clamp.

✔ Lifts just enough to clear the floor (approx. 200-300mm).
✔ Ideal for moving drums on and off pallets (pallet-straddle models available).

2. Drum Rotator / Tilter (DA Series)

Best For: Pouring & Dispensing.

Equipped with a gear mechanism that allows the operator to rotate the drum 180° or 360°. This allows for precise pouring of contents into a hopper or mixer.

✔ High lifting height (up to 1.4m or more).
✔ Secure locking band to hold the drum during rotation.

3. Low Profile / Pallet Loading

Best For: Pallet Accessibility.

Standard lifters often have legs that block access to pallets. Low-profile or "Straddle Leg" designs (DTW type) allow the legs to go around the pallet, enabling the operator to place a drum in the center or corner of a pallet.

Key Design Features

Eagle-Grip Structure: A spring-loaded clamping mechanism that automatically locks onto the upper rim of the drum. The heavier the drum, the tighter the grip.
Hydraulic System: High-quality cylinder with a foot pedal for easy lifting and a release knob/handle for controlled lowering.
Heavy-Duty Wheels: typically equipped with Nylon or Polyurethane (PU) wheels. PU wheels are quiet and protect floors, while Nylon wheels are durable and chemical resistant.
Universal Fit: Most models are adjustable to handle both steel and plastic (HDPE) drums, provided they have a standard top rim.

How to Use a Drum Lifter

Operation Steps (Standard DT Type)
Approach: Push the lifter towards the drum with the clamp jaws open. Ensure the lower support (if present) touches the drum body.
Engage: Position the "Eagle-grip" clamp so the upper jaw rests on the top rim and the lower jaw rests just below the rim.
Lift: Pump the foot pedal (or handle). The clamp will bite into the rim and lift the drum off the ground.
Transport: Move the drum to the desired location. Keep the drum low during transport for stability.
Release: Lower the drum slowly by turning the release valve. Once the drum is on the ground, the clamp will release automatically or manually.

Safety Precautions

⚠ WARNING: Rim Condition is Critical

Most hydraulic drum lifters rely on the drum rim (chime) to lift. Do not use standard eagle-grip lifters on drums that are damaged, deformed, or lack a pronounced rim (e.g., some smooth-sided plastic drums), as the drum may slip and fall.

Check Capacity: Never exceed the Rated Load (W.L.L.), typically 250kg - 450kg for standard models.
Surface: Operate on flat, smooth, and hard surfaces (concrete). These units are not designed for gravel, dirt, or steep ramps.
Secure the Load: For drum rotators/tilters, ensure the belly band or locking chain is tight before lifting or rotating.
Foot Protection: Operators should wear safety boots, as fully loaded drums are extremely heavy.
Inspection: Regularly check the hydraulic cylinder for oil leaks and ensure the clamping teeth are sharp and not worn out.
