The HLC-C Type Horizontal Lifting Clamp is a robust handling tool designed specifically for the safe lifting and horizontal transport of steel plates and profiled bars.

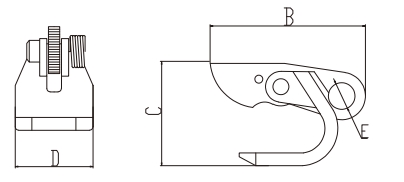

| Item No. | Capacity (Per Pair) | Jaw Opening | Dimensions (mm) | Net Weight | Product Code | |||
|---|---|---|---|---|---|---|---|---|
| B | C | D | E | |||||
| (t) | (mm) | - | - | - | - | (kg) | ||
| HLCC150 | 1.5 | 0 - 50 | 210 | 130 | 100 | 30 | 4.30 | 160401500 |
| HLCC300 | 3.0 | 0 - 50 | 236 | 203 | 110 | 36 | 6.00 | 160403000 |
| HLCC500 | 5.0 | 0 - 60 | 273 | 251 | 130 | 40 | 12.00 | 160405000 |
| HLCC900 | 9.0 | 0 - 100 | 380 | 290 | 165 | 40 | 28.40 | 160409000 |
Lifting clamps utilize various mechanisms (lever, cam, roller, or screw) to provide a friction grip on the plate. When selecting a clamp, consider:
IMPORTANT: Minimum Load Requirement
Some clamps (especially cam action types) rely on a minimum load to engage the gripping force safely. Unless specified otherwise by the manufacturer:
• The load should not be less than 20% of the Safe Working Load (SWL).
• The plate thickness should not be less than 20% of the maximum jaw opening.
Do not use defective clamps. Place the clamp over the load center. If the plate is long and tends to bend, use two clamps with a spreader beam to prevent the clamps from twisting. Keep oil, grease, and contaminants away from the gripping jaws.
Regularly inspect for:
