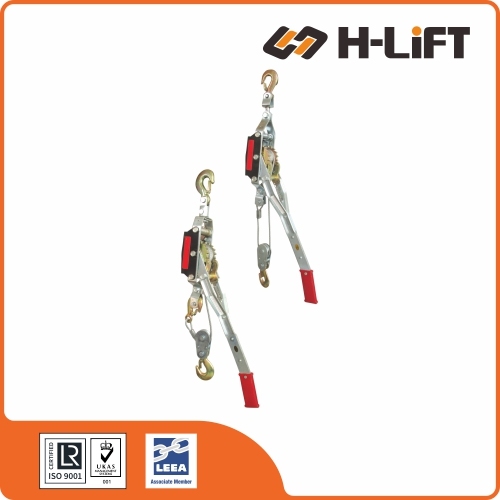

The H-Lift HPS Type Hand Power Puller is a manual come-along device designed for lifting, pulling, and securing heavy loads using a ratcheting lever mechanism. This versatile wire rope puller creates substantial force through manual operation, making it ideal for construction, automotive, agricultural, and industrial applications where portability and manual control are essential.
The Power Puller (Come Along) is a versatile heavy-duty tool designed for demanding pulling tasks. Available in standard and "Double Gear" configurations, it is ideal for moving stuck vehicles, tensioning fences, removing tree stumps, and general construction rigging. Featuring aircraft-grade cable and drop-forged hooks, it ensures reliability when you need it most.
HPD Series: Features a Dual-Gear, Dual-Pawl design that distributes pulling force evenly across the drum, significantly increasing durability and safety over single-gear models.
Available in 2 Ton and 4 Ton heavy-duty configurations to handle high-tension tasks like vehicle recovery and industrial tensioning.
Equipped with galvanized aircraft-grade wire rope, providing exceptional tensile strength and resistance to rust and corrosion.
Drop-forged steel hooks with spring-loaded safety latches ensure connections remain secure, even if tension is momentarily released.
This Power Puller is designed strictly for Pulling (Horizontal) applications. It is NOT a hoist and should never be used for overhead lifting.
| Item No. | Capacity (t) |
Type | Gear Qty |
Hook Qty |
Cable Lines | Cable Size (mm x m) |
Weight (kg) |
Product Code |
|---|---|---|---|---|---|---|---|---|
| HPS-2H-01 | 1 | Standard | 1 | 2 | 1 | 4.5 x 1.68 | 1.9 | 421000201 |
| HPS-2H-H2 | 2 | Heavy Duty | 1 | 2 | 2 | 5.0 x 2.28 | 2.2 | 421000202 |
| HPD-2H-H2 | 2 | Heavy Duty | 2 | 2 | 2 | 5.0 x 2.28 | 2.8 | 421000203 |
| HPS-2H-H4 | 4 | Heavy Duty | 1 | 2 | 2 | 6.0 x 3.05 | 4.8 | 421000204 |
| HPD-2H-H4 | 4 | Heavy Duty | 2 | 2 | 2 | 6.0 x 3.05 | 5.0 | 421000205 |
A Hand Puller (also known as a manual puller or hand-operated come-along) is a mechanical device designed to lift, pull, or secure heavy loads using manual effort. By employing a ratcheting lever mechanism, it multiplies force, allowing users to move objects that would otherwise be impossible to handle manually.
Allows the user to apply force in one direction while preventing the load from slipping back. This ensures the force applied is maintained and the load remains secure.
Manually operated by the user to engage the ratchet mechanism. The length of the handle provides the mechanical leverage needed to create tension.
Typically a heavy-duty cable (wire rope), chain, or webbing strap that connects the puller to the load, wound around a central drum or spool.
Equipped with drop-forged hooks (often with safety latches) on both ends to securely anchor the device to a fixed point and the load itself.
To ensure safe operation, always adhere to the following rules:
