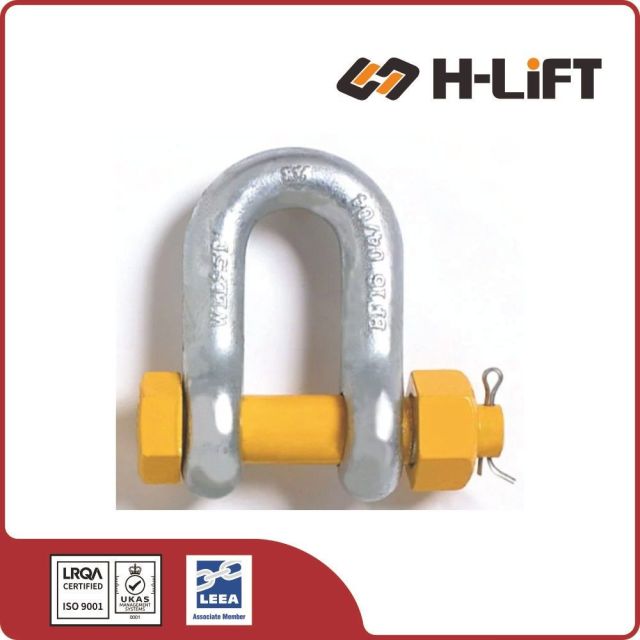

Grade S Safety Pin Dee Shackle AS 2741

No.701012

The Grade S Safety Pin Dee Shackle is a heavy-duty, high-strength lifting connector specifically engineered for secure, long-term, and permanent rigging setups across demanding industrial applications.

  • Advanced Secure Pin Design: Features a robust bolt, nut, and safety split pin closure mechanism that effectively prevents accidental dislodgment, even when dynamic loads cause the pin to rotate during operation.
  • Vibration & Sliding Resistant: Uniquely suited for high-stress environments where lifting loads may slide along the pin or where machinery vibrations could compromise standard screw-pin designs.
  • High-Strength Application: Manufactured to deliver exceptional load-bearing capacity, making it the highly recommended choice for critical overhead lifting, heavy-duty towing, and extreme 4WD recovery operations.
  • In-Line Load Optimization: The narrower "Dee" profile is expertly designed to handle straight, in-line tension safely, providing a secure connection for single-leg wire ropes and chain slings.

Technical Data

Grade S Safety Pin Dee Shackle

Standard: AS 2741 | Safety Factor 6:1 | Vibration Resistant

Grade S Safety Pin Dee Shackles are engineered for long-term or permanent lifting applications where security is paramount. The "Dee" shape allows for strong single-leg connections, while the safety pin mechanism ensures the pin remains secure even under vibration.

Commonly used in lifting, towing, and 4WD applications, the safety pin design allows the main pin to rotate freely during loading conditions without unscrewing, preventing accidental disengagement.

  • Configuration: Dee shape body with safety pin (bolt, nut, and split pin).
  • Compliance: Fully conforms to AS 2741.
  • Finish: Hot dipped galvanised or electro galvanized for durability.
  • Security: Ideal for equipment that vibrates; pin will not dislodge.
  • Safety: Proof tested to 2 x WLL. Minimum Break Load (MBL) is 6 x WLL.
Grade S Safety Pin Dee Shackle

Technical Specifications & Dimensions

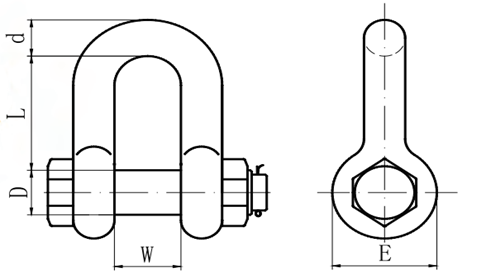

*Refer to the diagram above for dimension references (d, D, W, L, E).

Item No. Size (mm) W.L.L. (t) Dimensions (mm) Weight (kg) Product Code
d D W L E
SH12006 6 0.5 6 8 12 22 17 0.06 701012006
SH12008 8 0.75 8 10 13 26 21 0.08 701012008
SH12010 10 1 10 11 17 32 25 0.15 701012010
SH12011 11 1.5 11 13 18 37 27 0.22 701012011
SH12013 13 2 13 16 21 41 33 0.38 701012013
SH12016 16 3.2 16 19 27 51 40 0.7 701012016
SH12019 19 4.7 19 22 32 60 48 1.1 701012019
SH12022 22 6.5 22 25 37 71 54 1.7 701012022
SH12025 25 8.5 25 29 43 81 60 2.5 701012025
SH12029 29 9.5 29 32 46 90 67 3.23 701012029
SH12032 32 12 32 35 52 100 76 4.6 701012032
SH12035 35 13.5 35 38 57 113 84 6.25 701012035
SH12038 38 17 38 41 60 124 92 8.05 701012038
SH12044 44 25 44 51 73 146 110 12.9 701012044
SH12051 51 35 51 57 83 171 127 18.9 701012051
SH12057 57 42.5 57 63 95 181 143 30.5 701012057
SH12063 63 55 63 70 105 203 153 41.05 701012063
SH12076 76 85 76 83 127 229 165 66.5 701012076
SH12089 89 120 89 95 146 267 203 110 701012089
SH12102 102 150 102 108 165 318 229 168.3 701012102
