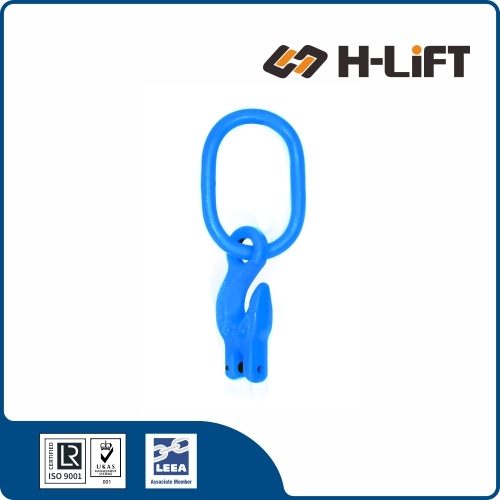

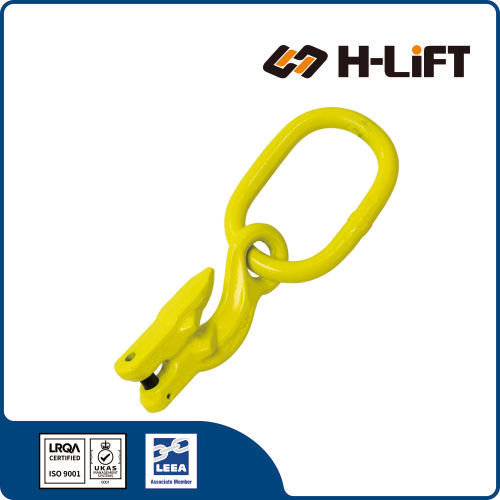

The Grade 100 Master Link with Integrated Shortening Hook (MLS Type) is a streamlined top rigging component designed specifically for 1-leg chain sling applications.
*Integrated hook simplifies 1-leg sling assembly
| Method | Complexity | Advantage |
|---|---|---|
| Integrated (MLS) (This Product) |
1 Component | Clean & Simple. No loose parts. Shortest vertical length. Perfect for quick lifting jobs. |
| Traditional Build (Separate Parts) |
3+ Components (Ring + Connector + Hook) |
Modular. Allows replacing parts if one breaks, but adds unnecessary weight and length. |
| Item No. | Chain Size (mm) |
WLL (ton) |

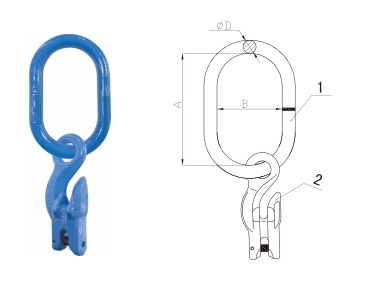

Master Link Dimensions (mm) | Included Shortener | Weight (kg) |
Product Code | ||
|---|---|---|---|---|---|---|---|---|
| A | B | D | ||||||
| 10-MLS-06 | 6 | 1.4 | 110 | 60 | 13 | 10-EGC-06 | 0.64 | 505028006 |
| 10-MLS-08 | 8 | 2.5 | 120 | 70 | 14 | 10-EGC-08 | 1.12 | 505028008 |
| 10-MLS-10 | 10 | 4 | 140 | 80 | 17 | 10-EGC-10 | 2.08 | 505028010 |
| 10-MLS-13 | 13 | 6.7 | 160 | 95 | 22 | 10-EGC-13 | 3.84 | 505028013 |
| 10-MLS-16 | 16 | 10 | 190 | 110 | 25 | 10-EGC-16 | 6.75 | 505028016 |
| 10-MLS-20 | 20 | 16 | 230 | 130 | 32 | 10-EGC-20 | 13.47 | 505028020 |
Grade 100 Sling Components are high-strength alloy steel lifting accessories designed for heavy-duty lifting applications. Compared with Grade 80, Grade 100 offers higher working load limits (WLL) at the same size, or the same WLL with a smaller, lighter component.
Used to connect the sling to the crane hook.
End fittings for attaching loads.
Used to join chain or components.
For complex rigging scenarios.
| Item | Grade 80 | Grade 100 |
|---|---|---|
| Relative Strength | Base | +25% Higher |
| Sling Weight | Heavier | Lighter |
| Typical Marking | G80 / 8 | G100 / 10 |
| Cost | Lower | Higher |
Every Grade 100 component must be clearly marked with:
