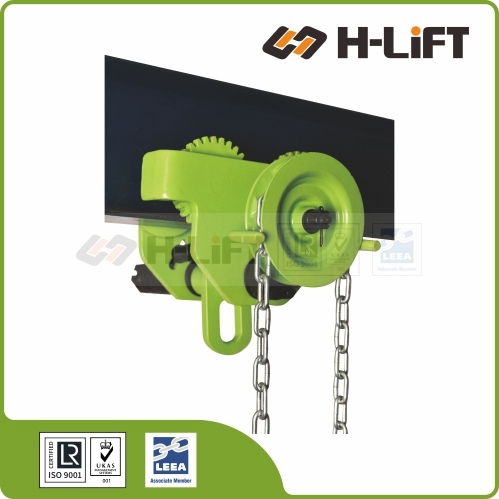

The H-Lift GT-CA Geared Travel Trolley is a heavy-duty material handling device designed to smoothly transport heavy suspended loads horizontally along I-beams and overhead tracks.

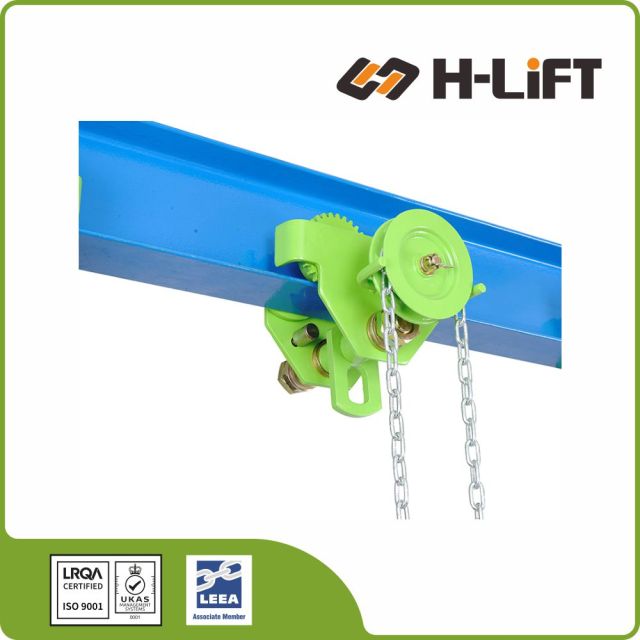

The GT-CA Geared Travel Trolley is a high-precision traversing solution designed for moving heavy suspended loads along overhead beams. Featuring a robust hand chain drive and high-grade gearing, it allows for effortless and extremely accurate horizontal positioning. Ideal for I-beams and H-beams, this trolley is the industry standard for workshops, maintenance bays, and heavy industrial assembly lines.
The integrated hand chain and gear system enables operators to move loads with millimeter precision and minimal physical effort, regardless of the load's weight. Supplied with a standard 3-meter operating height chain.
Highly customizable load bar. By simply adjusting the number of spacing washers, the GT-CA can be fitted to a wide variety of I-beam flange widths (Standard vs. Extra-Long beam ranges).
Equipped with anti-drop plates that act as safety lugs to prevent derailment. These plates also double as bumpers to protect trolley wheels from damage when contacting rail end stoppers.
Features high-strength wheels mounted on permanently lubricated, sealed ball bearings. This ensures smooth, maintenance-free travel along the beam, even when handling maximum rated capacities up to 10 tons.
| Item No. | Capacity | Proof Load (kN) |
Effort to Lift Rated Load (N) |
Min. Radius of Curve (m) |

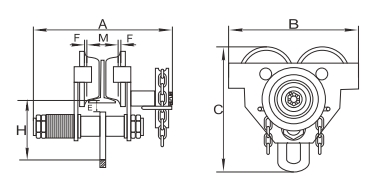

Dimensions (mm) | Adjustable Beam Width (mm) | N.W. (kg) | Product Code | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A (Std/Extra) | B | C | E | F | H | Std Beam | Extra Long | Std | Extra | |||||||
| kN | N | m | Std | Extra | B | C | E | F | H | M1 | M2 | kg | kg | |||
| GTCA010 | 1t | 14.7 | 44 | 1 | 390 | 492 | 260 | 239 | 32.5 | ≈3 | 136 | 64-203 | 102-305 | 19.9 | 21.1 | 130201000 |
| GTCA020 | 2t | 29.4 | 80 | 1.1 | 400 | 502 | 300 | 286 | 31 | ≈3 | 161 | 88-203 | 102-305 | 28.5 | 30.6 | 130202000 |
| GTCA030 | 3t | 44.1 | 65 | 1.3 | 430 | 532 | 345 | 336 | 35 | ≈3 | 185 | 102-203 | 102-305 | 46 | 49.8 | 130203000 |
| GTCA050 | 5t | 73.5 | 90 | 1.4 | 444 | 544 | 390 | 393 | 37 | ≈3 | 220 | 114-203 | 108-305 | 57 | 60.8 | 130205000 |
| GTCA100 | 10t | 147 | 195 | 1.7 | 489 | 584 | 470 | 500 | 45 | ≈3 | 280 | 125-203 | 117-305 | 103 | 108.5 | 130210000 |
A push or geared travel trolley is a device designed to move heavy loads horizontally along an I-beam or similar track. It consists of a frame, wheels (rollers), and a suspension point for attaching a hoist or load.
Find the perfect trolley for your specific lifting application using the comparison table below:
| Series | Drive Type | Capacity | Key Advantage | Recommended Application |
|---|---|---|---|---|
| PT-CA Type | Push | 0.5T - 10T | Standard (Spacer Adj). Economical & stable. | Permanent installation. General factory use. Loads < 3 Ton. |
| GT-CA Type | Geared | 0.5T - 10T | Standard (Spacer Adj). Precise load positioning. | Permanent installation. Loads > 3 Ton or high ceilings (>6m). |
| PT-FA Type | Push | 0.5T - 5T | Quick Install. Threaded rod adjustment. | Maintenance teams. Temporary rigging. Frequent location changes. |
| GT-FA Type | Geared | 0.5T - 5T | Quick Install. Threaded rod adjustment. | Maintenance teams needing precise positioning. Temporary use. |
| PT-DB Type | Push | 0.5T - 10T | Twin Bar. Superior stability & anti-tilt. | Wide beams. Applications requiring extra stability against side-loading. |

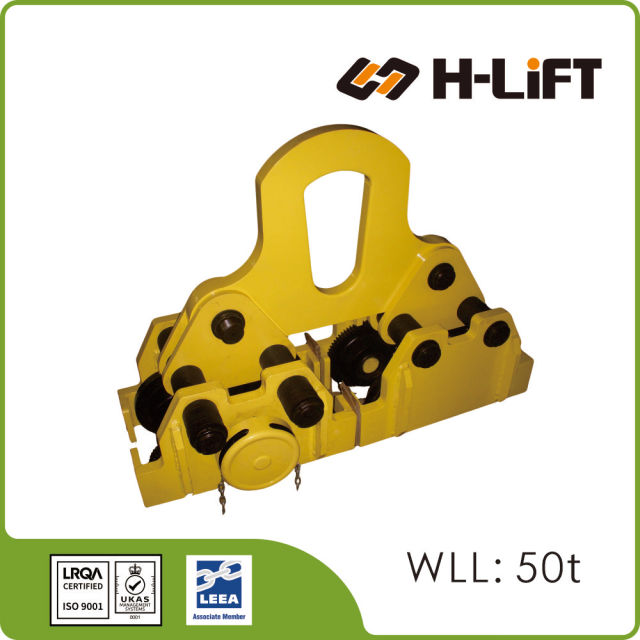

| GT-DB Type | Geared | 0.5T - 50T | Twin Bar. Ultra-heavy duty capacity. | Heavy machinery moving. Bridge construction. The only choice for 20T+ loads. |
| TCPS Type | Clamp | 2T - 6T | Integrated Shackle. Self-aligning & fast setup. | Portable lifting points. Applications requiring a pivoting shackle connection. |
Ensure the runway track is level and has an even surface. Check that positive end stops are installed. Verify the trolley width is set correctly with spacers centered. Confirm anti-tilt devices are properly adjusted. If re-assembling, ensure all bolts and nuts are fully tightened.
Do not side load! The trolley must be placed directly over the center of gravity of the load. Oblique side loading causes tipping and can lead to the trolley falling off the track. For push trolleys, push the load rather than pulling it to maintain better control.
Regularly inspect for wear on wheel treads and flanges. Check for insecure wheels, loose axle pins/nuts, or distorted side plates. Ensure hand chains (on geared models) are not damaged. Keep wheel running surfaces clean and free of oil/grease contamination to ensure traction.
