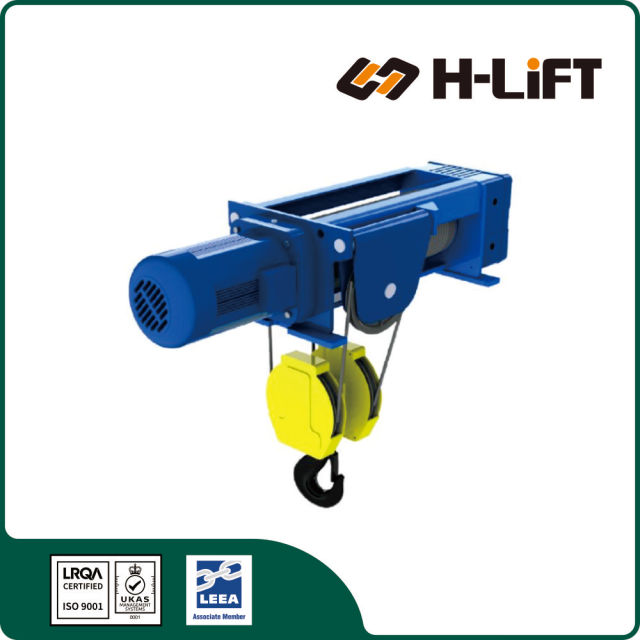

A foot-mounted wire rope hoist is a type of hoisting equipment that is designed to be mounted directly on the floor or base structure. This hoist utilizes a wire rope for lifting loads and typically features a compact, sturdy design that allows for efficient lifting and lowering operations. The hoist is often used in industrial and construction settings for heavy-duty lifting tasks.
Ideal for cargo elevators, manufacturing assembly lines, or fixed lifting points in warehouses.
A foot-mounted wire rope hoist (stationary wire rope hoist) is designed to be mounted directly on the floor or a base structure. This compact, sturdy hoist provides efficient lifting and lowering for heavy-duty industrial and construction tasks without motorized travel capability.
Fixed Mounting: Ideal for permanent installations or integration into custom double girder trolleys.What is Reeving? Hoist reeving is the path the wire rope follows around the drums and sheaves. The system consists of rollers, ropes, and a hook block.
Why Different Types? Different reeving ratios (e.g., 2:1, 4:1) allow the hoist to lift heavier loads by multiplying the lifting force. For example, a higher ratio increases capacity but may reduce lifting speed.
True Vertical Lift (4:2): Also known as "center lift," this configuration allows the hook to lift straight up and down with zero lateral movement, essential for precise positioning.
| Item No. | Capacity | Working Group | Rope Reeving | Lifting Speed | Lifting Motor | Rope Dia. | Lifting Height | Product Code |
|---|---|---|---|---|---|---|---|---|
| (t) | (m/min) | (kw) | (mm) | (m) | ||||
| WHF-B4 | 1.6 | M4 | 2/1 | 9/2.2 | 3/0.8 | 8 | 9/12/18/24/30 | 240604016 |
| 3.2 | M4 | 4/1 | 4.5/1.1 | 3/0.8 | 8 | 6/9/12/15 | 240604030 | |
| WHF-B5 | 3.2 | M4 | 2/1 | 8/2 | 4.5/1.1 | 11 | 9/12/18/24/30 | 240605030 |
| 6.3 | M4 | 4/1 | 4/1 | 4.5/1.1 | 11 | 6/9/12/15 | 240605063 | |
| WHF-B6 | 5 | M4 | 2/1 | 8/2 | 7.5/2 | 15 | 9/12/18/24/30 | 240606050 |
| 10 | M4 | 4/1 | 4/1 | 7.5/2 | 15 | 6/9/12/15 | 240606100 | |
| WHF-B7 | 10 | M4 | 2/1 | 7/1.8 | 13/3.4 | 18 | 9/12/18/24/30 | 240607100 |
| 20 | M4 | 4/1 | 3.5/0.9 | 13/3.4 | 18 | 6/9/12/15 | 240607200 |
Identify the maximum weight the hoist will lift. Always choose a hoist with a capacity equal to or greater than your heaviest load (including rigging hardware) to prevent overloading.
Determine the vertical distance the load needs to travel. This influences rope length and drum dimensions. Ensure the hoist matches your required vertical reach.
Analyze the environment: Indoor/outdoor, temperature extremes, dust, or moisture. Harsh environments may require higher IP protection ratings or corrosion-resistant components.
Choose High-speed for general productivity or Dual/Variable speed for precision positioning. Select between pendant (wired) or wireless remote controls.
Match the hoist to the expected workload frequency (ISO/FEM class). Proper classification prevents motor overheating and extends service life.
Check vertical clearance. Standard headroom fits general spaces, while Low headroom models are essential for facilities with limited ceiling height.
Determine if you need a Fixed mounting (stationary) hoist or a Trolley system for horizontal movement along a beam.
Ensure electrical requirements match local standards (e.g., 220V/380V/415V, 50/60 Hz). Mismatched power jeopardizes performance and safety.
Essential features include Overload Protection, Limit Switches (prevent over-travel), and Emergency Stop functions. Verify ISO/FEM standards compliance.
Consider ease of maintenance. Accessible spare parts and clear documentation ensure long-term uptime and lower lifecycle costs.
Understanding the load spectrum determines the correct hoist classification.
Reeving configuration affects lifting capacity, speed, and stability.

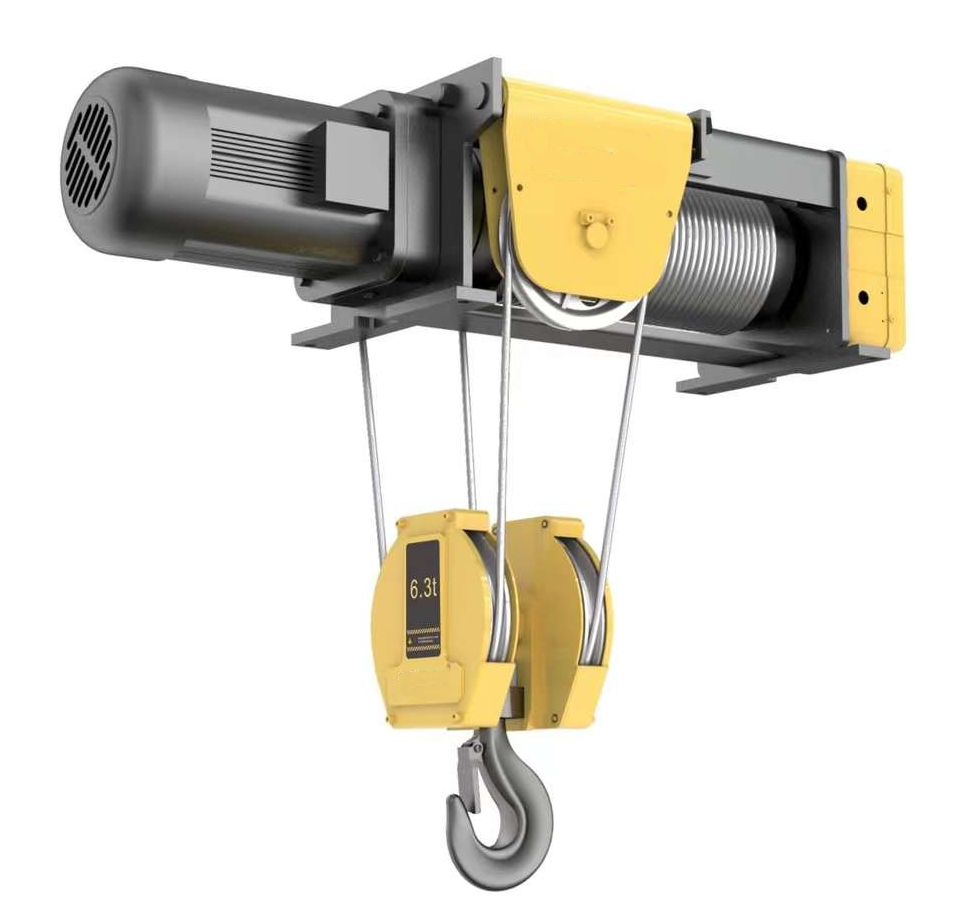

Key structural components of an electric wire rope hoist.
