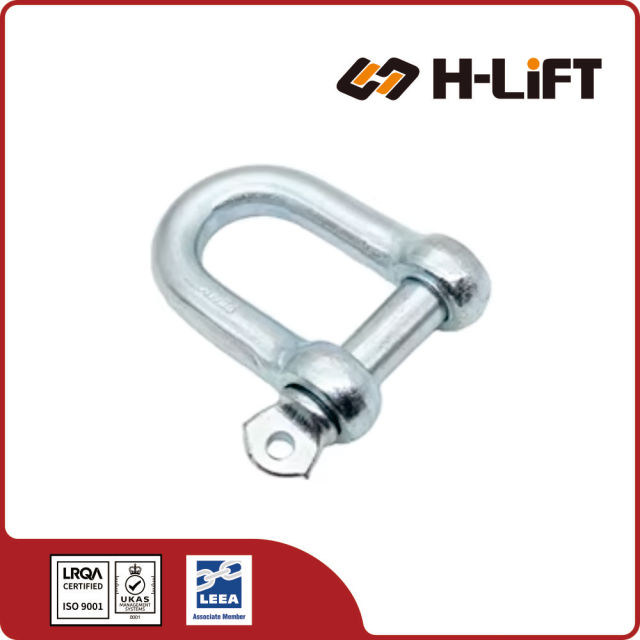

The H-Lift European Type Large Dee Shackle is an elongated, D-shaped connecting link designed to provide extra internal clearance for secure, straight-line rigging and lifting applications.

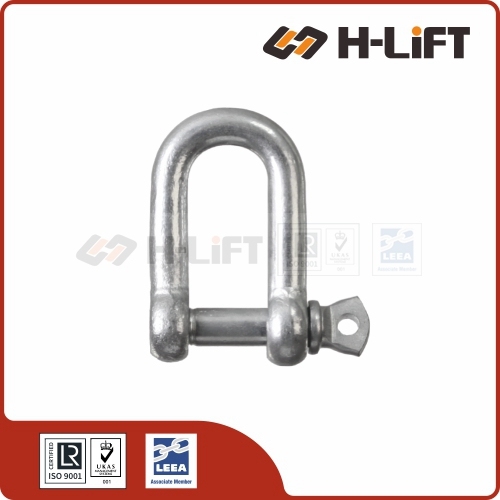

The European Type Large Dee Shackle (Chain Shackle) is engineered for applications demanding extra internal body clearance. Featuring a significantly deeper profile than standard Dee shackles, it effortlessly accommodates thicker slings and bulky hardware. Its straight-sided geometry ensures maximum strength for in-line pulling and lifting operations.
Features a significantly deeper and longer body. This "Large" profile provides the essential internal space to comfortably accommodate multiple wire rope eyes or heavy-duty thimbles.
The straight-sided "D" shape is engineered for maximum efficiency during straight pulls. It is the industry preferred choice for single-leg slings and direct chain connections.
Designed with a pin diameter that matches the body diameter. This balanced configuration ensures reliable and consistent load distribution across the entire shackle under tension.
Forged from high-quality carbon steel with a Safety Factor of 4:1. Protected by a bright electro-galvanized finish for reliable rust resistance in outdoor and marine use.
| Item No. | Size | W.L.L. | Dimensions (mm) | Weight (kg) |
Product Code | |||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | |||||
| SH06005 | 5 MM | 0.08 T | 10 | 11 | 19 | 5 | 0.015 | 701006005 |
| SH06006 | 6 MM | 0.1 T | 13 | 14 | 25 | 6 | 0.024 | 701006006 |
| SH06008 | 8 MM | 0.2 T | 16 | 18 | 32 | 8 | 0.050 | 701006008 |
| SH06010 | 10 MM | 0.32 T | 19 | 20 | 38 | 10 | 0.085 | 701006010 |
| SH06012 | 12 MM | 0.52 T | 25 | 26 | 51 | 12 | 0.170 | 701006012 |
| SH06014 | 14 MM | 0.7 T | 28 | 28 | 56 | 14 | 0.250 | 701006014 |
| SH06016 | 16 MM | 0.8 T | 32 | 33 | 64 | 16 | 0.380 | 701006016 |
| SH06018 | 18 MM | 1 T | 36 | 35 | 72 | 18 | 0.590 | 701006018 |
| SH06020 | 20 MM | 1.1 T | 38 | 40 | 76 | 20 | 0.760 | 701006020 |
| SH06022 | 22 MM | 1.5 T | 44 | 50 | 89 | 22 | 1.050 | 701006022 |
| SH06025 | 25 MM | 2.1 T | 51 | 57 | 100 | 25 | 1.550 | 701006025 |
| SH06028 | 28 MM | 3 T | 57 | 68 | 115 | 28 | 2.250 | 701006028 |
| SH06032 | 32 MM | 3.5 T | 64 | 73 | 127 | 32 | 3.350 | 701006032 |
| SH06036 | 36 MM | 4 T | 72 | 75 | 144 | 36 | 4.600 | 701006036 |
| SH06038 | 38 MM | 5 T | 76 | 85 | 152 | 38 | 5.860 | 701006038 |
| SH06042 | 42 MM | 6 T | 84 | 90 | 168 | 42 | 7.900 | 701006042 |
| SH06045 | 45 MM | 7 T | 90 | 96 | 180 | 45 | 10.00 | 701006045 |
| SH06050 | 50 MM | 8 T | 102 | 108 | 200 | 50 | 12.50 | 701006050 |
Type: Use Anchor (Bow) shackles for multi-leg systems or where side loading may occur. Use Chain (Dee) shackles for straight-line pulls.
Pin Type:
• Screw Pin: Suitable for general, non-permanent purposes.
• Bolt Type (Safety Pin): Essential for long-term installations or where the pin may rotate under load.
Avoid Side Loading: Position the shackle so the body takes the load along its center line. Use spacers if necessary to center the load on the pin.
Tightening: Tighten screw pins by hand, then lock with a small bar. Do not overtighten to the point of deforming the body. For bolt types, ensure the split cotter pin is fitted.
Choke Hitches: Place the pin through the eye of the sling. Never place the pin in contact with the "bight" of the choke or moving parts, as friction can unscrew the pin.
Storage: Store in a clean, dry place protected from corrosion. Never modify or galvanize a shackle without supplier approval.
Inspection: Check regularly for: distorted/stretched bodies, bent pins, damaged threads, nicks, gouges, or corrosion. illegible markings. If any defect is found, refer to a Competent Person.
