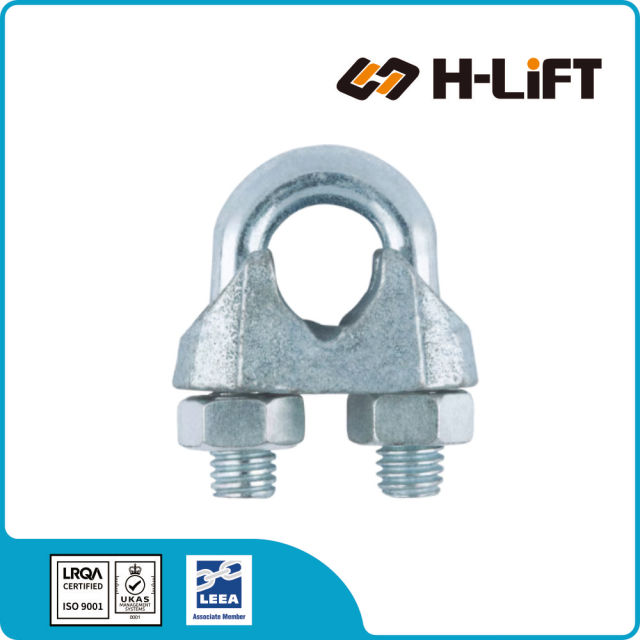

The H-Lift DIN 741 Malleable Wire Rope Clip is manufactured to German standard DIN 741 specifications for light-duty wire rope terminations. Constructed from heat-treated malleable cast iron, these U-bolt style clips provide affordable and reliable connections for non-critical applications such as hand rails, fencing, and guard rails, available in sizes from 3mm to 40mm wire rope diameter.
H-Lift DIN 741 Malleable Wire Rope Clips are the industry standard for light-duty, general-purpose rigging. Manufactured to German Industrial Standard specifications, these clips offer an economical solution for static applications such as fencing, netting, and catenary wires.
Manufactured to DIN 741 specifications, ensuring consistent metric sizing and compatibility with standard wire ropes.
Made from Malleable Iron (Cast) with a cast saddle, providing a cost-effective alternative to forged steel for non-critical loads.
Features an Electro-Galvanized finish for standard corrosion resistance in indoor and mild outdoor environments.
Available in a full range of metric sizes from 3mm to 40mm, suitable for small to medium diameter wire ropes.
Q: Can I use DIN 741 clips for lifting loads?
A: No. DIN 741 clips are "light duty" clamps made of malleable iron. For lifting, hoisting, or suspending heavy loads, you must use clips certified to EN 13411-5 (formerly DIN 1142) or US Federal Specifications, which are made of drop-forged steel.
Q: How do I install a wire rope clip correctly?
A: Always follow the rule: "Never saddle a dead horse." The saddle (the cast metal base) must sit on the "live" (load-bearing) end of the rope, while the U-bolt sits on the "dead" (cut) end.
Ensure proper spacing and saddle orientation during installation.
| Item No. | Size | Dimensions (mm) | Weight | Product Code | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | kg | |||
| WRCD03 | 3mm | 9 | 10 | 12 | 4 | 10 | 21 | 16 | 0.008 | 603003003 |
| WRCD05 | 5mm | 11 | 11 | 13 | 5 | 10 | 23 | 19 | 0.012 | 603003005 |
| WRCD06 | 6.5mm | 13 | 12 | 15 | 5 | 11 | 26 | 23 | 0.015 | 603003006 |
| WRCD08 | 8mm | 16 | 14 | 19 | 6 | 15 | 30 | 28 | 0.028 | 603003008 |
| WRCD10 | 10mm | 19 | 18 | 22 | 8 | 17 | 34 | 34 | 0.055 | 603003010 |
| WRCD11 | 11mm | 20 | 19 | 22 | 8 | 18 | 36 | 36 | 0.059 | 603003011 |
| WRCD13 | 13mm | 24 | 23 | 30 | 10 | 21 | 42 | 45 | 0.105 | 603003013 |
| WRCD14 | 14mm | 25 | 23 | 30 | 10 | 22 | 44 | 47 | 0.12 | 603003014 |
| WRCD16 | 16mm | 29 | 26 | 33 | 12 | 26 | 50 | 51 | 0.17 | 603003016 |
| WRCD19 | 19mm | 32 | 29 | 38 | 12 | 30 | 54 | 63 | 0.215 | 603003019 |
| WRCD22 | 22mm | 37 | 33 | 44 | 14 | 34 | 61 | 71 | 0.34 | 603003022 |
| WRCD26 | 26mm | 41 | 35 | 45 | 14 | 37 | 65 | 81 | 0.39 | 603003026 |
| WRCD30 | 30mm | 48 | 37 | 50 | 16 | 43 | 74 | 94 | 0.6 | 603003030 |
| WRCD34 | 34mm | 52 | 42 | 55 | 16 | 50 | 80 | 104 | 0.72 | 603003034 |
| WRCD40 | 40mm | 58 | 45 | 60 | 16 | 55 | 88 | 124 | 0.88 | 603003040 |
DO NOT USE FOR OVERHEAD LIFTING. DIN 741 clips are designed strictly for static loads such as handrails, fencing, and netting. For safety-critical loads or lifting applications, you must use EN 13411-5 or US Type Drop Forged clips.
The DIN 741 Malleable Wire Rope Clip is a widely used fitting designed to create an eye or loop in a wire rope. Conforming to the German DIN 741 standard, these clips are known for their affordability and ease of use in general rigging, construction, and light industrial settings where a secure, non-critical connection is required.
Made from malleable iron, a heat-treated cast iron that offers increased ductility and toughness compared to standard grey cast iron, providing a balance of strength and economy.
Consists of a U-shaped bolt with two threaded ends and a cast saddle. The saddle fits over the wire rope, and tightening the nuts secures the rope in place to form a loop.
Ideal for fencing, guard rails, light suspension, and general securing tasks. They are a reliable choice for static loads where heavy lifting certification is not required.
Designed strictly according to the specifications outlined in the DIN 741 standard, ensuring consistent sizing and performance expectations.
NOT FOR CRITICAL LIFTING. DIN 741 clips are suitable for light-duty, static applications. They may not be suitable for critical applications where load capacity is high or failure could result in injury. For overhead lifting or high-load scenarios, use heavy-duty clips such as Drop Forged or Cast Steel clips (EN 13411-5).
Selection, Installation, Safety, and Maintenance
Wire rope clips (also called wire rope clamps or cable clamps) are mechanical fittings used to form eyes (loops) or temporary terminations at the end of wire ropes. They typically consist of a U‑bolt, a saddle, and two nuts that clamp the live and dead ends of the rope together.
When selected and installed correctly, wire rope clips can provide a secure and adjustable termination that reaches a high percentage of the rope’s original breaking strength. They are widely used in construction, lifting, marine, transportation, and general industrial applications.
The most common design, consisting of a U‑shaped bolt, a saddle, and two nuts.
These have two saddles and two through‑bolts, distributing the clamping force more evenly around the rope.
Most manufacturers mark clips by wire rope diameter. Below is a typical application range guide:
| Clip Size (inch) | Typical Rope Diameter (mm) | Typical Application Range |
|---|---|---|
| 1/8" | 3–4 mm | Light cables, small lanyards, small barriers |
| 3/16" | 5 mm | Small guy wires, light suspensions |
| 1/4" | 6–7 mm | General utility cables, small hoisting lines |
| 3/8" | 10 mm | Construction and industrial rigging |
| 1/2" | 13 mm | Heavier rigging, structural guys |
| 5/8"–1" | 16–26 mm | Heavy construction, cranes, tower guys |
Exact sizing and designation depend on the manufacturer’s catalog and local standards.
Wire rope clips are used wherever a loop or temporary termination is needed on wire rope:

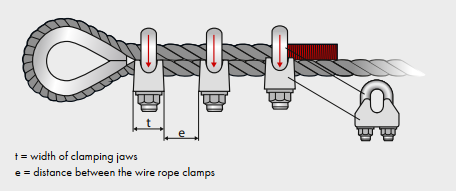

Wire rope clips work by clamping the live end and the dead end of the rope together over a sufficient length, using multiple clips with specified spacing and torque. The friction and deformation under the saddle prevent the rope from slipping.
“Never saddle a dead horse.”
This means the saddle must always be on the live (load‑bearing) end, and the U‑bolt on the dead end. Otherwise, the rope can be crushed and slip under load.
Before installing wire rope clips, always:
(Example values based on a common forged U‑bolt clip table)
| Rope Dia. (in) | Min. No. of Clips | Approx. Turnback Length (in) | Torque (ft‑lbs) |
|---|---|---|---|
| 1/8" | 2 | 3.25–3.5 | 4.5 |
| 3/16" | 2 | 3.75–4.0 | 7.5 |
| 1/4" | 2 | 4.75 | 15 |
| 5/16" | 2 | 5.25 | 30 |
| 3/8" | 2 | 6.5 | 45 |
| 1/2" | 3 | 11.5 | 65 |
| 5/8" | 3 | 12–16 | 95 |
| 3/4" | 3–4 | 18–19 | 130–225 |
| 1" | 5 | 26–37 | 225 |
Always refer to the specific manufacturer’s data sheet, as exact numbers vary by brand and standard.
Several frequent mistakes significantly reduce the efficiency and safety of wire rope clips:
