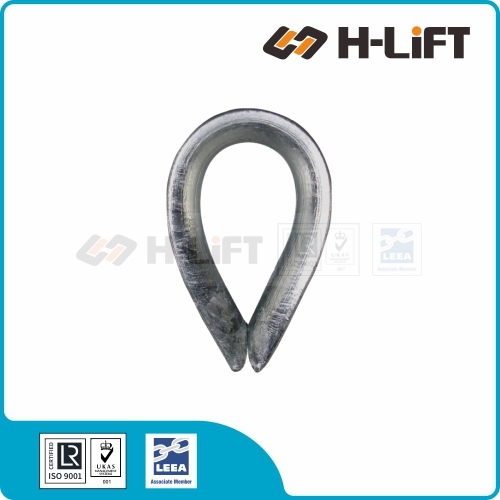

The H-Lift DIN 3090 Wire Rope Thimble serves as a robust protective interface for wire rope eyes, preventing structural damage caused by direct contact with mating hardware. Constructed from durable mild steel, this thimble acts as a solid barrier against abrasion and crushing forces, ensuring the longevity and safety of lifting slings in heavy-duty rigging environments.

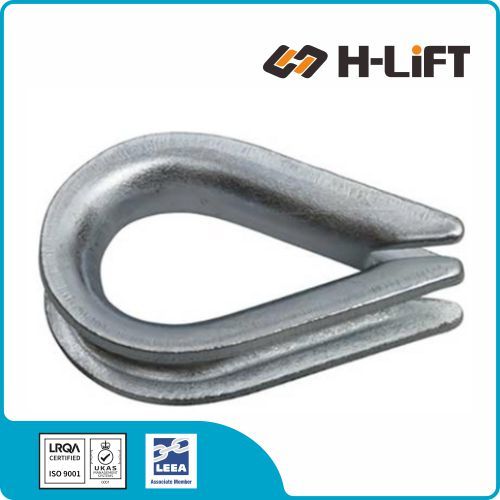

The DIN 3090 (EN 13411-1) Wire Rope Thimble is a heavy-duty, solid steel reinforcement designed for demanding rigging operations. Unlike standard pressed thimbles, its solid body offers exceptional resistance to crushing and deformation, ensuring the integrity of the wire rope eye under heavy loads.
Manufactured to DIN 3090 and the harmonized European standard EN 13411-1. Ensures compatibility with modern safety and rigging requirements.
Made from solid Mild Steel / Carbon Steel. Provides a robust barrier significantly stronger than pressed thimbles (like DIN 6899), preventing eye collapse.
Small Sizes (4-6mm): Electro-Galvanized.
Standard Sizes (8mm+): Hot Dip Galvanized for superior long-term resistance in marine environments.
Size range from 4mm to 60mm. Ideal for heavy lifting operations, crane rigging, towing lines, and permanent mooring installations.

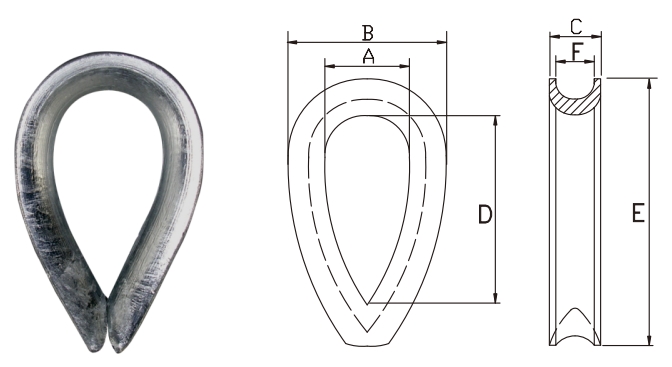

| Item No. | Size | Dimensions (mm) | Weight (kg) |
Product Code | |||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||||
| WRTDC04 | 4mm | 10 | 20 | 7.5 | 20 | 32 | 5 | 0.01 | 604004004 |
| WRTDC06 | 6mm | 15 | 29 | 10 | 31 | 47 | 7 | 0.028 | 604004006 |
| WRTDC08 | 8mm | 20 | 41 | 13 | 40 | 64 | 9 | 0.065 | 604004008 |
| WRTDC10 | 10mm | 25 | 53 | 16 | 50 | 78 | 11 | 0.125 | 604004010 |
| WRTDC12 | 12mm | 30 | 60 | 19.5 | 64 | 98 | 13 | 0.235 | 604004012 |
| WRTDC14 | 14mm | 35 | 69 | 21.5 | 70 | 110 | 16.5 | 0.245 | 604004014 |
| WRTDC16 | 16mm | 40 | 78 | 24 | 81 | 126 | 18 | 0.39 | 604004016 |
| WRTDC18 | 18mm | 45 | 88 | 27 | 94 | 140 | 20 | 0.485 | 604004018 |
| WRTDC20 | 20mm | 50 | 100 | 31.5 | 100 | 150 | 23 | 0.78 | 604004020 |
| WRTDC22 | 22mm | 55 | 102 | 32 | 109 | 162 | 24 | 0.89 | 604004022 |
| WRTDC24 | 24mm | 60 | 110 | 34 | 121 | 175 | 26 | 1 | 604004024 |
| WRTDC26 | 26mm | 65 | 122 | 42 | 130 | 195 | 33 | 1.58 | 604004026 |
| WRTDC28 | 28mm | 70 | 130 | 43 | 147 | 215 | 35 | 1.685 | 604004028 |
| WRTDC32 | 32mm | 80 | 145 | 48 | 163 | 235 | 36 | 2.28 | 604004032 |
| WRTDC36 | 36mm | 90 | 165 | 54 | 185 | 270 | 41 | 3.58 | 604004036 |
| WRTDC40 | 40mm | 100 | 200 | 61 | 205 | 330 | 47 | 6.38 | 604004040 |
| WRTDC44 | 44mm | 110 | 220 | 66 | 224 | 350 | 52 | 8.2 | 604004044 |
| WRTDC48 | 48mm | 120 | 230 | 72 | 244 | 370 | 57 | 8.8 | 604004048 |
| WRTDC52 | 52mm | 130 | 250 | 80 | 280 | 410 | 63 | 12.2 | 604004052 |
| WRTDC60 | 60mm | 150 | 295 | 89 | 330 | 490 | 70 | 19.4 | 604004060 |
