The H-Lift Closed Spelter Socket (WRSCS Type) is a heavy-duty wire rope termination engineered for permanent anchoring in high-stress environments. Featuring a solid eye design, this socket accepts a pin or bolt for secure attachment to fixed points or structural elements. When properly installed with molten zinc or resin, it delivers 100% of the wire rope's breaking strength, providing maximum safety and reliability for offshore platforms, bridge construction, and mining operations.

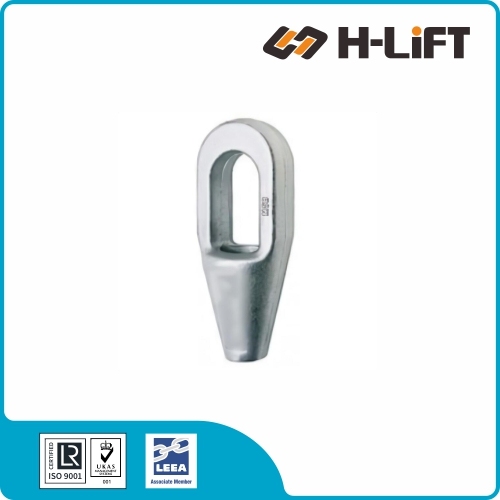

The Closed Spelter Socket (WRS-CS) is a heavy-duty cast steel termination designed for critical applications. When properly installed with molten zinc or Wirelock resin, it achieves 100% of the wire rope's breaking strength, making it the strongest end fitting available for bridges, cranes, and towing.
Delivers the full breaking strength of the wire rope. Superior to wedge sockets (~80%) or swaged sleeves (~90%) for permanent anchoring.
Features a permanent, fully enclosed eye loop that provides a secure attachment point for shackles, pins, or bolts, preventing accidental disengagement.
Compatible with both Molten Zinc and Wirelock Resin pouring methods to create a permanent, void-free cone bond.
Manufactured from high-quality Cast Steel. Available for wire ropes from 8mm to 60mm (8T to 180T capacity).

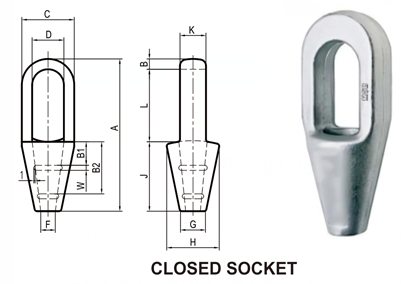

Refer to the diagram above for dimensions: A, B, C, D, F, G, H, J, K, L| Item No. | Rope Diameter | Ult. Load (tons) |
Dimensions (mm) | N.W. (kg) |
Product Code | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | A | B | C | D | F | G | H | J | K | L | ||||
| WRSCS09 | 5/16 - 3/8 | 8-9 | 8 | 123.95 | 15.75 | 42.93 | 24.64 | 12.7 | 20.57 | 42.93 | 57.15 | 17.53 | 50.8 | 0.34 | 607001009 |
| WRSCS12 | 7/16 - 1/2 | 11-12 | 10 | 138.18 | 17.53 | 50.8 | 29.46 | 14.22 | 23.88 | 47.75 | 63.5 | 22.35 | 57.15 | 0.68 | 607001012 |
| WRSCS16 | 9/16 - 5/8 | 14-16 | 20 | 160.27 | 20.57 | 66.8 | 35.81 | 17.53 | 28.45 | 60.45 | 76.2 | 25.4 | 63.5 | 1.13 | 607001016 |
| WRSCS19 | 3/4 | 19 | 25 | 192.02 | 26.92 | 76.2 | 42.16 | 20.57 | 31.75 | 69.85 | 90.42 | 31.75 | 76.2 | 1.93 | 607001019 |
| WRSCS22 | 7/8 | 22 | 40 | 222.25 | 31.75 | 92.2 | 47.75 | 23.88 | 38.1 | 82.55 | 101.6 | 38.1 | 88.9 | 3.29 | 607001022 |
| WRSCS25 | 1 | 25 | 50 | 250.95 | 35.05 | 104.9 | 58.42 | 28.7 | 44.45 | 95.25 | 112.78 | 44.45 | 101.6 | 4.76 | 607001025 |
| WRSCS28 | 1-1/8 | 28 | 60 | 279.4 | 38.1 | 114.3 | 65.02 | 31.75 | 50.8 | 104.9 | 127 | 50.8 | 114.3 | 6.46 | 607001028 |
| WRSCS35 | 1-1/4 - 1-3/8 | 31.5-35 | 72 | 307.85 | 41.4 | 134.62 | 71.37 | 38.1 | 57.15 | 120.65 | 139.7 | 57.15 | 127 | 8.96 | 607001035 |
| WRSCS38 | 1-1/2 | 38 | 80 | 354.08 | 49.28 | 135.38 | 81.03 | 41.4 | 69.85 | 133.35 | 152.4 | 63.5 | 152.4 | 13.25 | 607001038 |
| WRSCS42 | 1-5/8 | 42 | 120 | 384.3 | 54.1 | 146.05 | 82.55 | 44.45 | 76.2 | 139.7 | 165.1 | 69.85 | 165.1 | 16.33 | 607001042 |
| WRSCS48 | 1-3/4 - 1-7/8 | 45-47.5 | 140 | 438.15 | 55.63 | 171.45 | 95.25 | 50.8 | 79.5 | 162.05 | 190.5 | 76.2 | 192.02 | 25.98 | 607001048 |
| WRSCS53 | 2 - 2-1/8 | 50-53 | 160 | 495.3 | 61.98 | 193.8 | 111.25 | 57.15 | 95.25 | 187.45 | 215.9 | 82.55 | 217.42 | 35.83 | 607001053 |
| WRSCS60 | 2-1/4 - 2-3/8 | 57-60 | 180 | 536.7 | 66.8 | 215.9 | 127 | 63.5 | 101.6 | 209.55 | 228.6 | 92.2 | 241.3 | 47.63 | 607001060 |
