  • Clip on Truck Winch with 50mm 9m Webbing Strap AS/NZS 4380
  • Clip on Truck Winch with 50mm 9m Webbing Strap AS/NZS 4380
  • Clip on Truck Winch with 50mm 9m Webbing Strap AS/NZS 4380
  • Clip on Truck Winch with 50mm 9m Webbing Strap AS/NZS 4380

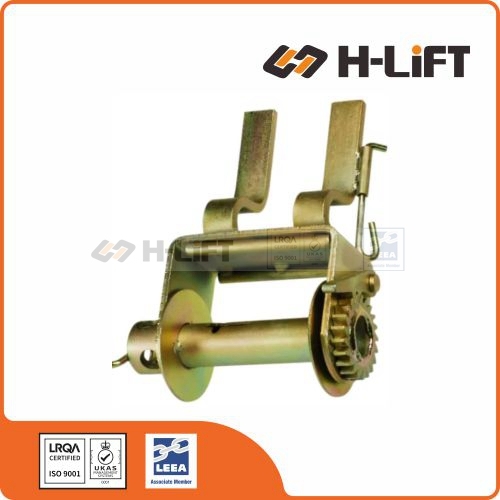

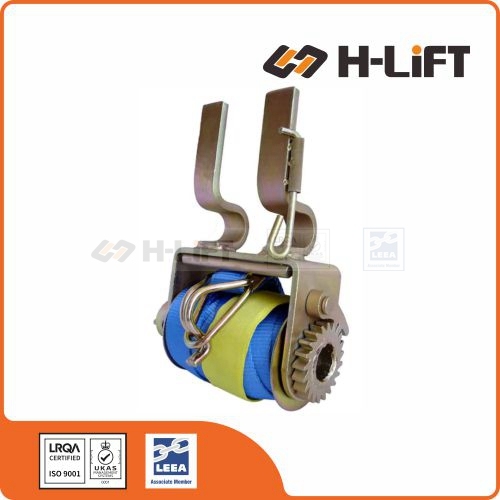

Clip on Truck Winch with 50mm 9m Webbing Strap AS/NZS 4380

No.403050096

The Clip-On Truck Winch with a 50mm x 9m Webbing Strap is a heavy-duty cargo restraint system compliant with AS/NZS 4380, designed for versatile load securing on trailers.

  • Lashing Capacity: Rated for 2500 kg (webbing) and 3000 kg (bare winch) for demanding heavy transport needs.
  • Clip-On Design: Easily attaches and slides along the vehicle's tie-down rails to precisely match cargo positioning.
  • Premium Webbing: Includes a 9-meter high-performance polyester strap with a secure Hook & Keeper end fitting.
  • Efficient Tensioning: Built-in ratchet cap system provides smooth, controlled tightening for maximum load stability.
CONTACT US

Technical Data

Clip-on Truck Winch with 50mm x 9m Webbing Strap (AS/NZS 4380)

Complete Lashing System Supplied as a ready-to-use combination featuring a Clip-on Winch and a 9m x 50mm Replacement Strap (LC 2500kg).
Portable Clip-on Design Designed to clip directly onto the standard Coaming Rail of flatbed trucks. Can be positioned anywhere along the vehicle side or removed for storage.
Heavy Duty Security Provides a Lashing Capacity (LC) of 2500kg, making it suitable for securing heavy general freight, timber, pipes, and pallets.
AS/NZS 4380 Compliant Both the winch body and the strap are manufactured and tested to meet AS/NZS 4380 standards, ensuring full compliance for Australian road transport.
Easy Operation Features a standard hex drive or drilled capstan compatible with standard Truck Winch Bars for high-tensioning leverage.
Durability The winch body is zinc-plated for corrosion resistance, and the strap is made from UV-stabilized high-tenacity polyester.
Truck Winch Type: Clip-on vs. Slide-on
Type Installation Pros & Cons
Clip-on Winch
(This Product)		 Portable / Removable Flexible.
Clips anywhere on the rail. Can be removed to prevent theft or rust. Best if your truck doesn't have a winch track.
Slide-on Winch
(Track Mount)		 Track Mounted Permanent.
Slides into a specific "winch track" under the trailer. Cannot fall off, but limited by track length.
Technical Specifications
Item No. Strap Width Strap Length Lashing Capacity End Fitting Product Code
CTW50HK5T9 50mm 9m 2500kg Hook & Keeper 403050096
Related Products
28mm ratchet tie down strap 28mm LC 750kg Ratchet Strap
35mm ratchet tie down strap 35mm LC 1500kg Ratchet Strap
50mm LC 2500kg ratchet tie down strap 50mm LC 2500kg Ratchet Strap

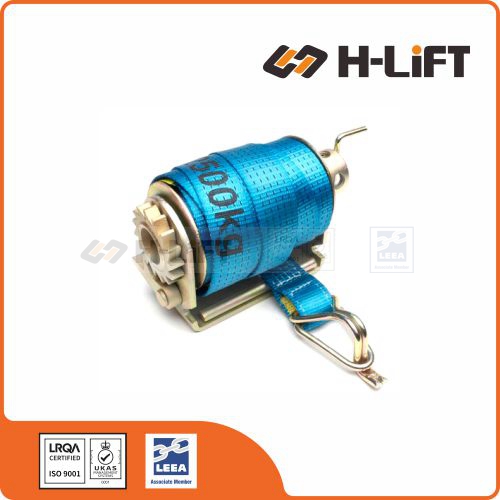

Slide On Truck Winch with 50mm 9m Strap Slide On Truck Winch with 50mm 9m Strap
