The H-Lift Cable Wedge Socket is a versatile, field-installable termination designed for applications requiring on-site adjustment of wire rope length. Unlike permanent resin or swaged fittings, the wedge socket utilizes the tension of the load to tighten the wedge into the socket body, creating a secure grip with 80% termination efficiency. This feature makes it invaluable for mobile cranes, draglines, and construction equipment where ropes may need to be shortened or replaced frequently due to wear.

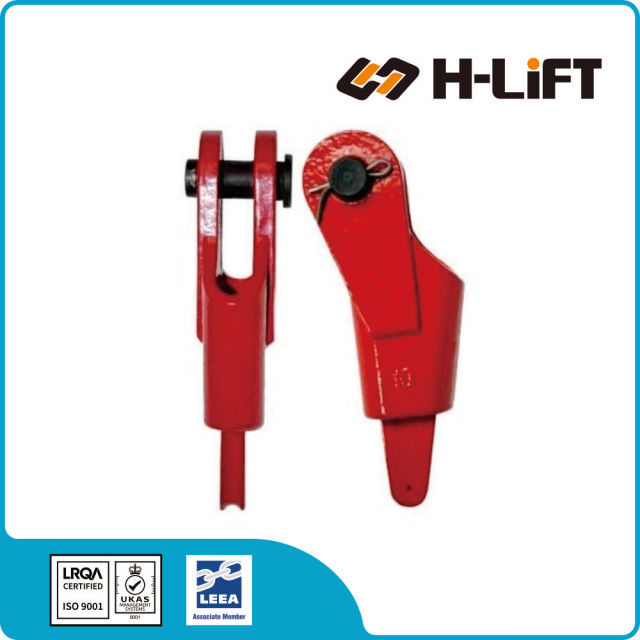

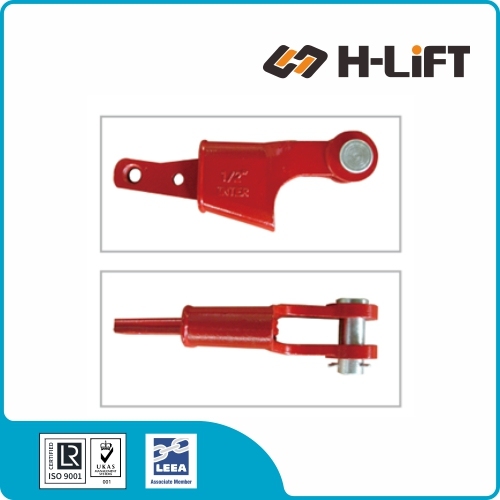

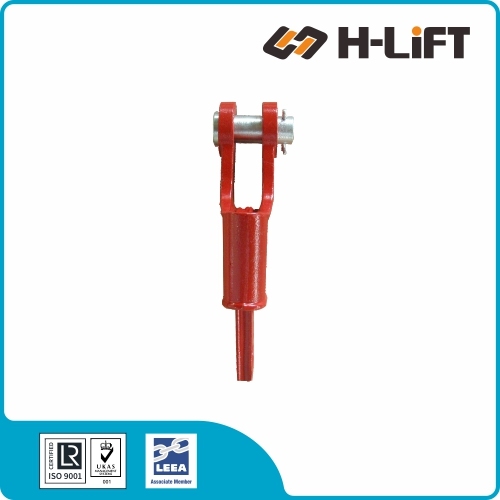

The WRS-WS Cable Wedge Socket is a field-installable wire rope termination designed for mobile cranes and construction projects. Unlike spelter sockets, it requires no molten zinc or resin, allowing for quick on-site installation and rapid adjustment of cable length.
Designed for easy installation and adjustment on-site. The wedge mechanism acts as a vice, pulling tighter as the load increases for a secure grip.
Provides a termination efficiency of 80% of the wire rope's breaking strength. (Note: For 100% efficiency, use Spelter Sockets).
Essential for crane operations where cable length requirements change frequently. Allows for rapid shortening or replacement of the wire rope.
Available for wire ropes from 9mm (3/8") to 32mm (1-1/4"). Commonly used in cranes, draglines, mining, and excavators.

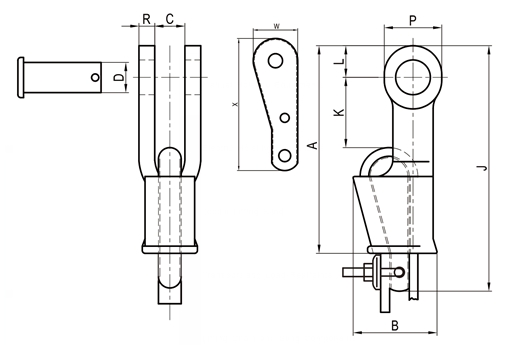

Refer to the diagram above for dimensions: A, B, C, D, G, J, K, L, R, S| Item No. | Rope Diameter | Ult. Load (tons) |
Dimensions (mm) | N.W. (kg) |
Product Code | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | A | B | C | D | G | J | K | L | R | S | ||||
| WRSWS10 | 3/8 | 9-10 | 8 | 143 | 67.56 | 20.57 | 20.57 | 35.02 | 187.45 | 40.64 | 22.35 | 11.18 | 54.1 | 1.67 | 607003010 |
| WRSWS13 | 1/2 | 11-13 | 10 | 172.97 | 89.66 | 25.4 | 25.4 | 41.15 | 222.25 | 30.73 | 26.92 | 12.7 | 65.02 | 3.27 | 607003013 |
| WRSWS16 | 5/8 | 14-16 | 20 | 207.77 | 107.95 | 31.75 | 30.23 | 53.85 | 262.64 | 41.66 | 30.99 | 14.22 | 82.55 | 5.21 | 607003016 |
| WRSWS19 | 3/4 | 18-19 | 25 | 248.41 | 125.98 | 38.1 | 35.05 | 61.98 | 305.56 | 55.12 | 35.56 | 16.76 | 92.2 | 7.76 | 607003019 |
| WRSWS22 | 7/8 | 20-22 | 40 | 283.46 | 143.76 | 44.45 | 41.4 | 68.33 | 355.6 | 56.39 | 42.16 | 19.05 | 109.47 | 11.57 | 607003022 |
| WRSWS26 | 1 | 24-26 | 50 | 323.85 | 160.27 | 50.8 | 50.8 | 74.68 | 402.84 | 68.83 | 50.8 | 22.35 | 119.38 | 16.39 | 607003026 |
| WRSWS28 | 1-1/8 | 28 | 60 | 365.25 | 176.28 | 57.15 | 57.15 | 84.07 | 449.58 | 57.15 | 57.15 | 25.4 | 138.18 | 24.11 | 607003028 |
| WRSWS32 | 1-1/4 | 30-32 | 60 | 406.4 | 191.26 | 63.5 | 63.5 | 90.42 | 520 | 63.5 | 63.5 | 28.45 | 155.7 | 29.17 | 607003032 |
