The H-Lift Cable Pulling Sock CS-AA Type is a high-strength steel wire pulling grip for installing power and communication cables through conduits, ducts, and trenches.
The CS-AA Type Cable Pulling Socks are high-performance grips engineered for demanding installations. Featuring an extended mesh length and a reinforced braid pattern, they provide superior gripping stability for pulling larger and heavier cables. This design distributes tension evenly over a longer surface area, ensuring a secure, non-slip hold for long-distance pulls.
Features an extended mesh length that maximizes surface contact with the cable. This increased friction ensures a stronger holding power, reducing the risk of slippage during heavy pulls.
Constructed with a reinforced galvanized steel wire braid for exceptional tensile strength and durability. Ideal for long service life in harsh environments.
The braided structure naturally contracts and tightens around the cable as load is applied, creating a firm, self-locking grip that becomes tighter as pulling force increases.
Perfect for heavy-duty applications in electrical, telecommunications, and utility sectors. Suitable for pulling cables through long conduits, underground ducts, or overhead lines.

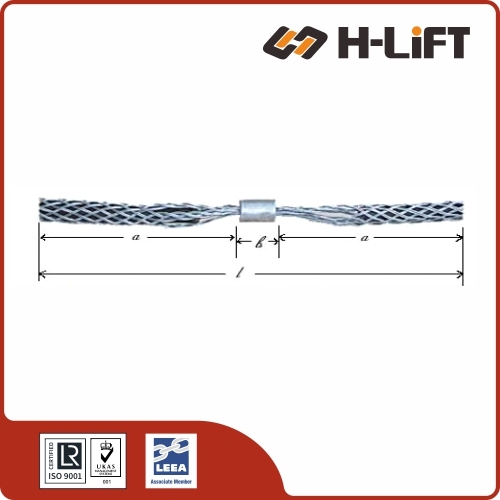

| Item No. | Range (mm) |
A (mm) |
B (mm) |
L (mm) |
Max. Working Load (lbs) |
Weight (kg) |
Product Code |
|---|---|---|---|---|---|---|---|
| CSAA0811 | 8 - 11 | 350 | 140 | 840 | 600 | 0.05 | 707002011 |
| CSAA1113 | 11 - 13 | 400 | 210 | 1010 | 800 | 0.12 | 707002013 |
| CSAA1316 | 13 - 16 | 500 | 210 | 1210 | 1200 | 0.22 | 707002016 |
| CSAA1621 | 16 - 21 | 550 | 220 | 1320 | 1500 | 0.27 | 707002021 |
| CSAA2125 | 21 - 25 | 750 | 220 | 1720 | 2000 | 0.44 | 707002025 |
| CSAA2530 | 25 - 30 | 750 | 220 | 1720 | 2500 | 0.52 | 707002030 |
| CSAA3035 | 30 - 35 | 900 | 280 | 2080 | 3000 | 0.7 | 707002035 |
| CSAA3542 | 35 - 42 | 1000 | 280 | 2280 | 3500 | 0.95 | 707002042 |
| CSAA4250 | 42 - 50 | 1300 | 280 | 2880 | 4500 | 2.1 | 707002050 |
