The H-Lift Cable Sock CS-A Type is a woven steel wire pulling grip designed to secure cables for installation through conduits, ducts, and trenches in utility and telecommunications work.
The CS-A Type Single Eye Cable Sock is a robust tool designed for end-pulling operations. Featuring a flexible single eye and high-tensile galvanized steel wire mesh, it contracts to securely grip cables, conductors, and wire ropes, making it essential for underground and overhead installations.
Features a single flexible eye at one end for easy attachment to pulling lines, swivels, or shackles. Perfect for standard end-pulling applications.
The galvanized steel wire mesh contracts and tightens around the cable sheath as tension is applied, providing a non-slip grip that protects the cable insulation.
Manufactured from high-tensile galvanized steel wire, offering durability and resistance to abrasion during heavy pulling through ducts and conduits.
Ideal for pulling underground power cables, overhead conductors, communication wires, and wire ropes. Capacity range from 600 lbs to 4500 lbs.

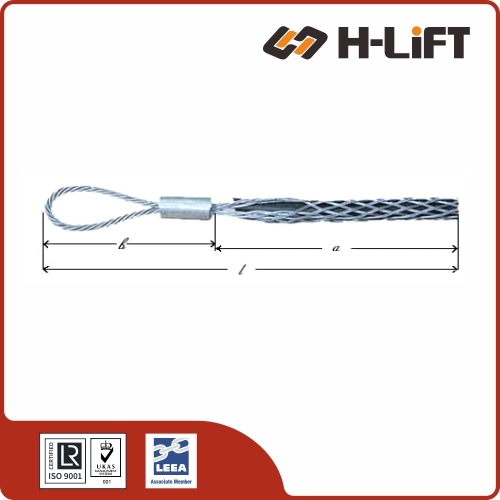

| Item No. | Range (mm) |
A (mm) |
B (mm) |
L (mm) |
Max. Working Load (lbs) |
Weight (kg) |
Product Code |
|---|---|---|---|---|---|---|---|
| CSA0811 | 8 - 11 | 370 | 90 | 460 | 600 | 0.028 | 707001011 |
| CSA1113 | 11 - 13 | 390 | 90 | 480 | 800 | 0.058 | 707001013 |
| CSA1316 | 13 - 16 | 630 | 130 | 760 | 1200 | 0.14 | 707001016 |
| CSA1621 | 16 - 21 | 710 | 130 | 840 | 1500 | 0.17 | 707001021 |
| CSA2125 | 21 - 25 | 970 | 130 | 1100 | 2000 | 0.28 | 707001025 |
| CSA2530 | 25 - 30 | 930 | 130 | 1060 | 2500 | 0.32 | 707001030 |
| CSA3035 | 30 - 35 | 1070 | 130 | 1200 | 3000 | 0.40 | 707001035 |
| CSA3542 | 35 - 42 | 1160 | 160 | 1320 | 3500 | 0.54 | 707001042 |
| CSA4250 | 42 - 50 | 1465 | 185 | 1650 | 4500 | 1.2 | 707001050 |
