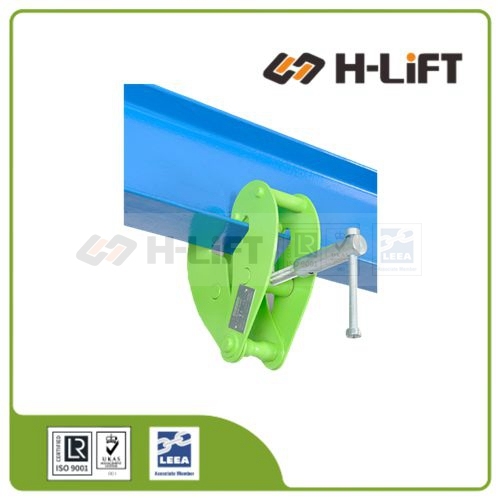

The H-Lift Beam Clamp BC Type is a robust, adjustable clamp designed to provide a quick and secure temporary anchoring point on I-beams or girders for various lifting and rigging applications.
The H-Lift BC Type Beam Clamp is a mechanical clamp designed to attach securely to the flange of a structural steel beam (like an I-beam or H-beam) without drilling or welding. It provides a rigid anchoring point for suspending loads, hoists, threaded rods, conduits, and piping.

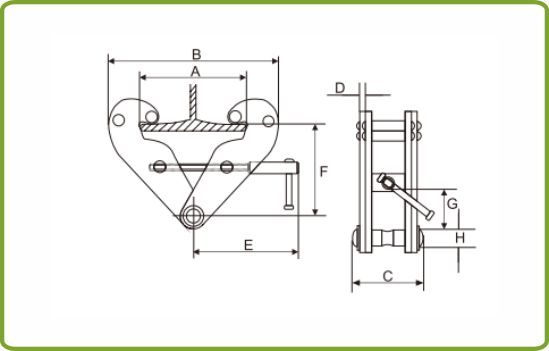

| Item No. | Capacity | Proof Load | Beam Width | Dimensions (mm) | N.W. | Product Code | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B (Max) | B (Min) | C | D | E | F (Max) | F (Min) | G | H | ||||||
| (t) | (kN) | (mm) | - | - | - | - | - | - | - | - | - | - | (kg) | ||
| BC010 | 1 | 19.6 | 75-230 | 240 | 367 | 192 | 94 | 4 | 194 | 154 | 102 | 22 | 20 | 4.0 | 150101000 |
| BC020 | 2 | 39.2 | 75-230 | 240 | 367 | 192 | 102 | 6 | 194 | 154 | 102 | 22 | 20 | 4.8 | 150102000 |
| BC030 | 3 | 58.8 | 80-345 | 355 | 520 | 243 | 132 | 8 | 241 | 223 | 133 | 38 | 22 | 9.8 | 150103000 |
| BC050 | 5 | 98.0 | 80-345 | 355 | 520 | 243 | 142 | 10 | 241 | 223 | 133 | 35 | 28 | 11.6 | 150105000 |
| BC100 | 10 | 196.0 | 90-350 | 360 | 532 | 272 | 180 | 12 | 284 | 234 | 155 | 47 | 38 | 17.0 | 150110000 |
A beam clamp is a lifting accessory designed to attach to the flange of a steel beam (I-beam or H-beam) to create a semi-permanent lifting point. It serves as an anchor for hoists, pulleys, or other lifting devices. Proper selection and use are critical to ensure the safety of the load and the integrity of the beam structure.
Beam clamps vary in capacity and design (adjustable/non-adjustable, scissor, screw, or bolt action). Consider:
NOTE: Most beam clamps are intended for overhead suspension. Consult the supplier if attaching to the load itself.
Ensure the lifting appliance (hoist) is compatible with the clamp. The load must not swing, as this imposes dangerous oblique loading. If using two clamps in tandem (e.g., with a spreader beam), ensure neither clamp exceeds its Safe Working Load (SWL).
Regularly clean and lubricate moving parts. Inspect for wear, distortion, cracks, insecure bolts, corrosion, or illegible markings. If defects are found, refer the clamp to a Competent Person immediately.
